Bacnet FCU Smart Thermostat 2/4 Pipes On/Off Valve Temperature Controller

Product ID : HTW-WF11-FC-2.4B

Product Tags :

Product Attributes :

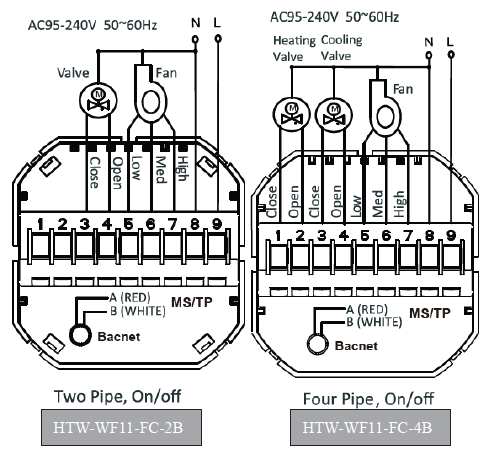

HTW-WF11-FC 2/4-*B series BACnet fan coil thermostat is designed to control 4 pipe Fan Coil Unit system,with outputs of 3 fan speed and 1 cooling valve and 1 heating valve, with remote setback(keycard) input andModbus communication. It is widely used in these environment like Homes, Residential buildings, Schools,Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

Bacnet FCU Smart Thermostat 2/4 Pipes On/Off Valve Temperature Controller

>>General

HTW-WF11-FC 2/4-*B series BACnet fan coil thermostat is designed to control 4 pipe Fan Coil Unit system,with outputs of 3 fan speed and 1 cooling valve and 1 heating valve, with remote setback(keycard) input andModbus communication. It is widely used in these environment like Homes, Residential buildings, Schools,Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>>Features

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Remote setback(keycard)
* BACnet Communication
* Fashion Sense of Science and Technology

Specification

Power supply	95~240Vac,50/60Hz	Sensor	NT3950,10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Storage Temp.	-5~45℃	Display Temp.Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Material	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Bottons	Capacitive Touch Buttons
