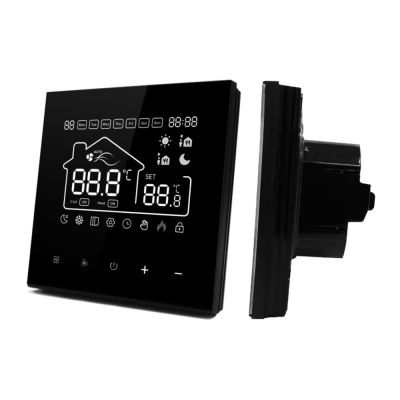

Termostato Smart WiFi / Standalone FCU Thermostat For Room Heating/Cooling Changeover

Product ID : HTW-EB-FC

Product Tags :

Product Attributes :

HTW-EB-FC series fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

PRODUCT DESCRIPTION

Wifi fcu thermostats

>> General

HTW-EB-FC series Wifi thermostat is widely used in Fan Coil system for cooling and heating application. Which include 2 pipe system (only for cooling) and 4 pipe system (cooling and heating are both available) applications. There are three options includes Wifi, Modbus or Standard one.

LCD touch screen smart thermostats

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
