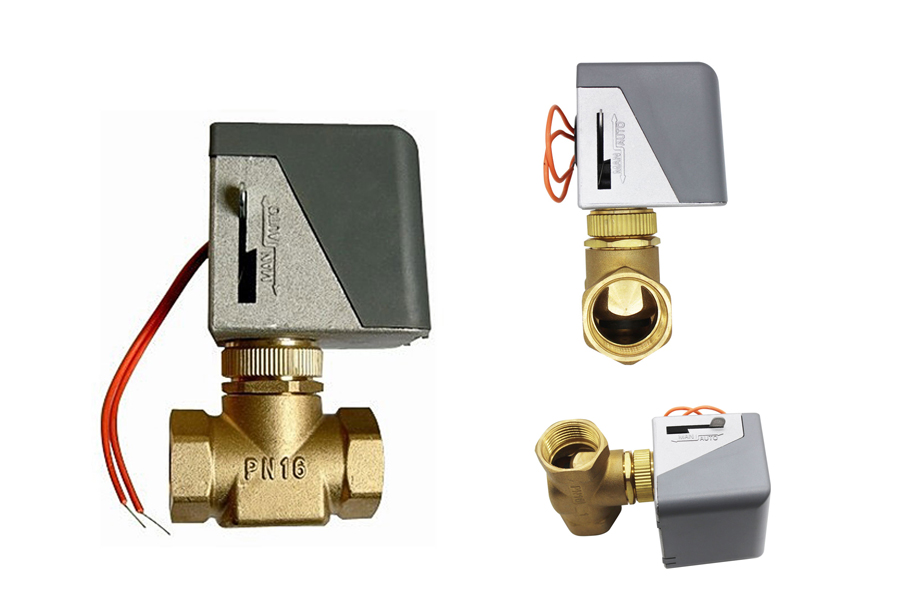

Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return
Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return

Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return

Product ID : V71
Product Tags : Motorized Zone Valve
Product Attributes :

HTW-V71 Series Motorized Valves are used to control the flow of hot water, chill water through the fan coil unit in heating,
cooling or air-conditioning applications, so as to control room temperature indirectly. When thermostat sends the controlling
signal to the motorized valve, the valve is opened with water flowing, and when the signal disappears, the valve, with the help of its own spring, returns back to its original place to close the valve so as to stop the water flow.

Product Description
Product Description

Forged Brass 3 Way 2 Wire Electric Motorized Ball Valve with Spring Return


>> General

HTW-V71 Series Motorized Valves are used to control the flow of hot water, chill water through the fan coil unit in heating,
cooling or air-conditioning applications, so as to control room temperature indirectly. When thermostat sends the controlling
signal to the motorized valve, the valve is opened with water flowing, and when the signal disappears, the valve, with the help of its own spring, returns back to its original place to close the valve so as to stop the water flow.
>> Characteristics & Materials

Actuator: Stainless steel plate, ABS plastic cover
Valve Body: Forged Brass
Stem: Brass/Stainless steel
Seat: Die-casting Aluminum Alloy
Paddle: Nitrile-butadiene rubber(NBR)

>> Actuator parameters


Model
Rated Voltage
 Power Consumption
Actuator
Cooperation time with Thermostat
V71-8503
AC220V±10%
7W
Single direction
Fully open:10s after on.
V71-8203
AC110V±10%
motorized drive
Fully close:5s after power off
V71-8003
AC24V±10%
valve spring regain

>> Valve Body parameters


No
Model
Caliber
Body Structure
Kv(Cv) Value
Closing Pressure (MPa)
1
V71-215
1/2’’ (15mm)
2 way valve
2.2(2.5)
0.2
2
V71-220
3/4’’ (20mm)
3.0(3.5)
0.18
3
V71-225
1’’ (25mm)
6.9(8.0)
0.15
4
V71-315
1/2’’ (15mm)
3 way valve
2.2(2.5)
0.2
5
V71-320
3/4’’ (20mm)
3.0(3.5)
0.18
6
V71-325
1’’ (25mm)
6.9(8.0)
0.15

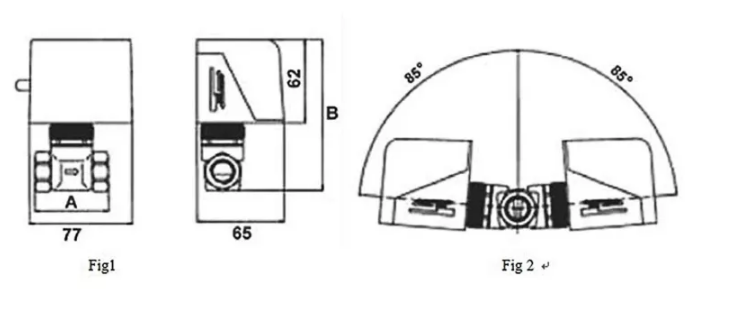

>> Dimension
