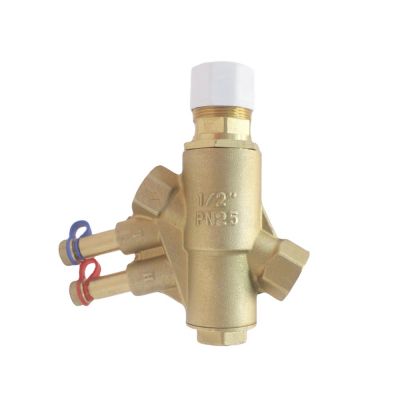

Bsp G Female Thread Brass Material Pressure Independent Balance Control Valve
HTW-PICV02 Series Pressure Independent Control Valve (PlCV) serves thecrucial function of precisely regulating and maintaining a constant flow rate within aheating, ventilation, and air conditioning (HVAC) system. Unlike traditional controlvalves, a PlCV can automatically adjust to changes in system pressure, ensuring aconsistent flow regardless of fluctuations in differential pressure.
Bsp G Female Thread Brass Material Pressure Independent Balance Control Valve
HTW-PICV02 Series Pressure Independent Control Valve (PlCV) serves thecrucial function of precisely regulating and maintaining a constant flow rate within aheating, ventilation, and air conditioning (HVAC) system. Unlike traditional controlvalves, a PlCV can automatically adjust to changes in system pressure, ensuring aconsistent flow regardless of fluctuations in differential pressure.
It is to provide accurate and stable flow regulation, regardless of variations insystem pressure, contributing to the efficiency, reliability, and performance ofHVAC systems.
The valve HTW-Picvo2 additionally equipped with 2 pressure test points (P+, P-),which allow measurement of the total differential pressure across the valve.
| Odering Size Guide | ||||||
| Type | Connections | Test Points | DN Class | Stroke | Medium Temperature | Actuator Connection |
| HTW-PICV01-15 | Rp 1/2" | With test points | PN25 as per EN1333 | Linear 5.0mm | 1....120ºC | M30*1.5mm |
| HTW-PICV02-20 | RP 3/4" | |||||
| HTW-PICV02-25 | RP 1" | |||||
The medium entering the valve passes through a variablerectangular opening (D) which is connected to the ring withthe dial (B) for presetting the maximum volumetric flow.Then, the medium flows through the flow control valve (E)with a linear characteristic and a stroke of 5 mm. A powerfulspring (C)ensures safe closing
