Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen
Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen

Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen

Product ID : HTW-WF01
Product Tags :
Product Description

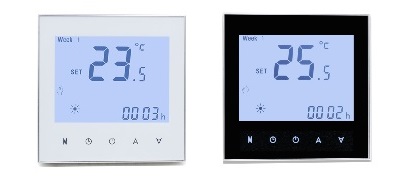

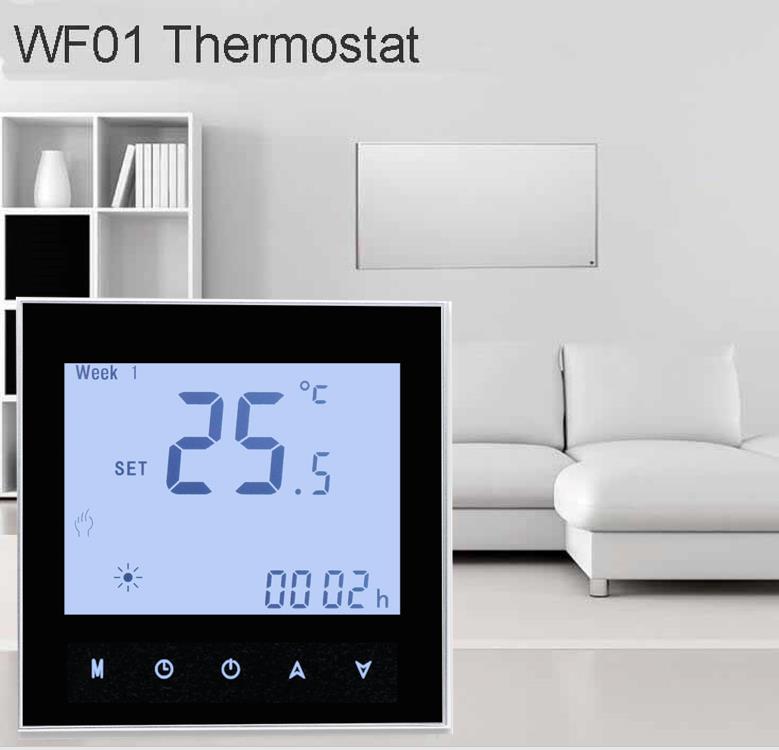

Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems



>> General
HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

>> Details

>> Ordering Guide

HTW-WF01- **


Code
Application
-3A
Water Heating, 3A, NC+NO+Com output terminals
-16A
Electric Underfloor Heating, 16A, L+N line voltage output terminals
-NV
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals



>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K

Current Load
Fan Relay 5A(-3A-inductive)
Temperature Accuracy
±0.5°C or ±1℉
Valve Relay 3A(1A -inductive)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Protection Class
IP20
Operating Buttons
Capacitive Touch Buttons
Wires on Terminals
Wire 2 x 1.5 mmor 1 x 2.5 mm2
Customer Service
1. OEM & ODM service offered
2. sample's fee can be refunded after order reached 2000pcs

Warranty
1. Test the products one by one before delivery
2. We guarantee 18months from the date you get the goods,excludes damaged by human
3. If you can find out the problem and fix it easily, we will offer several components for service
FAQ

Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming... Anyway, we are always ready to discuss details with you via Email.

Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.

Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.

Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
