Hotowell Fan Coil Thermostat Smart Programmable Thermostat Temperature Controller with Modbus Option

Product ID : HTW-WF11-FC

Product Tags :

Product Attributes :

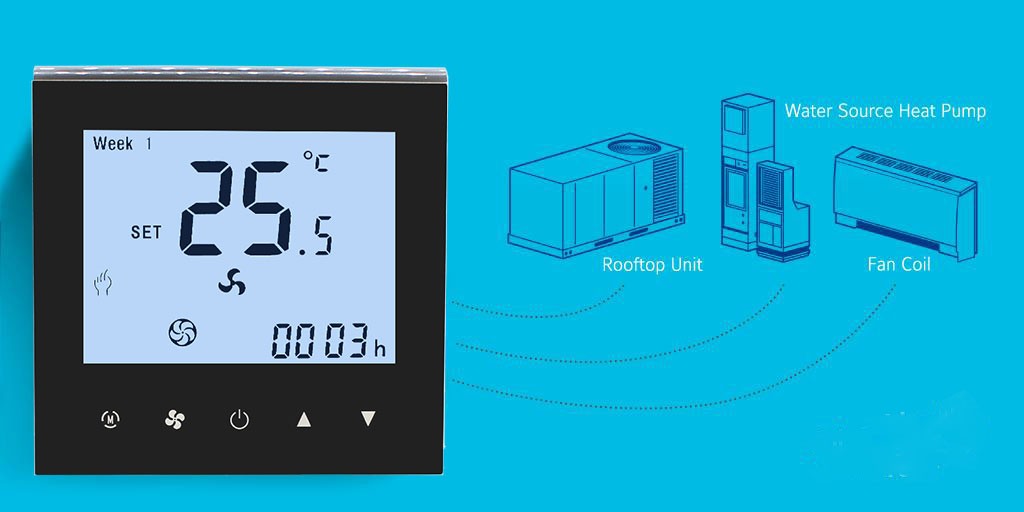

HTW−WF11−FC series fan coil thermostat is designed to control fan coil unit system, by switching on/off on 3 fan speed + HeatingƒCooling valves with Modbus communication. It is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.

Product Description

Hotowell Fan Coil Thermostat Smart Programmable Thermostat Temperature Controller with Mocbus Option

>> General

>> Feature

• Attractive modern styling
• Adjustable heating/cooling/ventilating mode control
• Adjustable manual 3-speed and automatic fan speed control
• 4pipe system
• Bacnet
• Keycard(Optional)
• External sensor(Optional)

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
