Air Conditioner FCU Thermostat Home Programmable Thermostat Temperature Controller with Modbus
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environments like Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Could be made as Modbus or Wifi connection.
>> General
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Could be made as Modbus or Wifi connection.

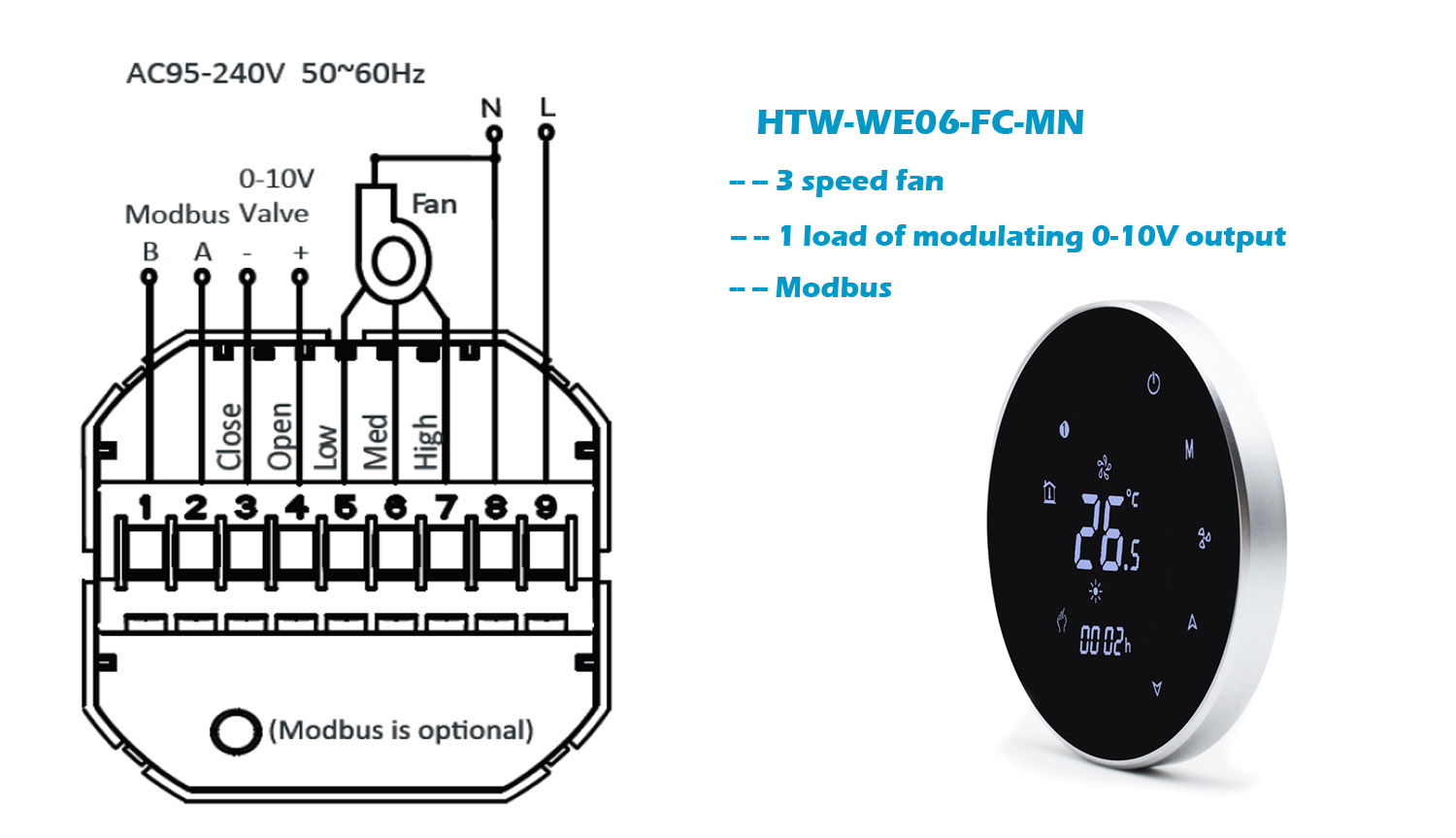

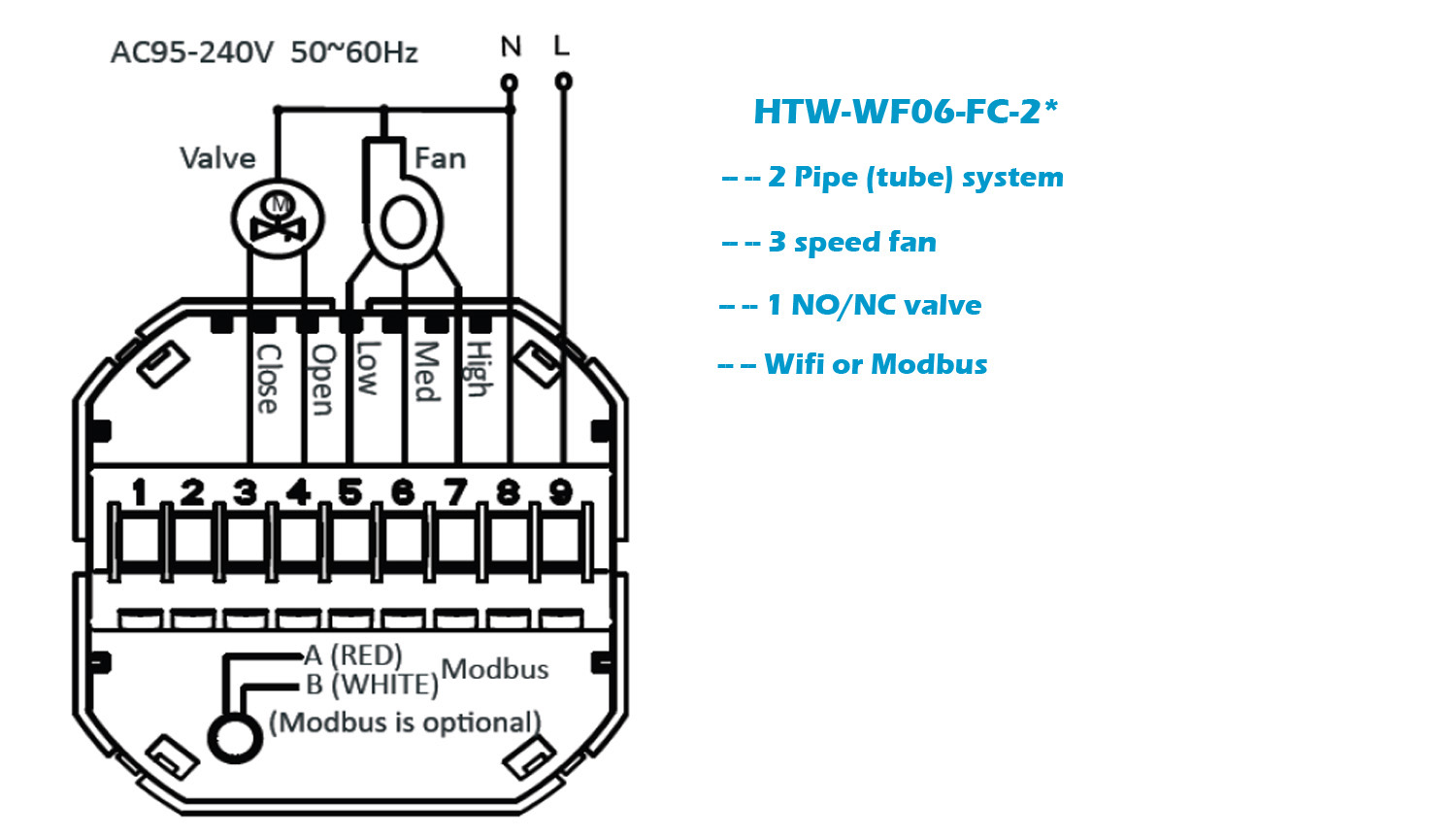

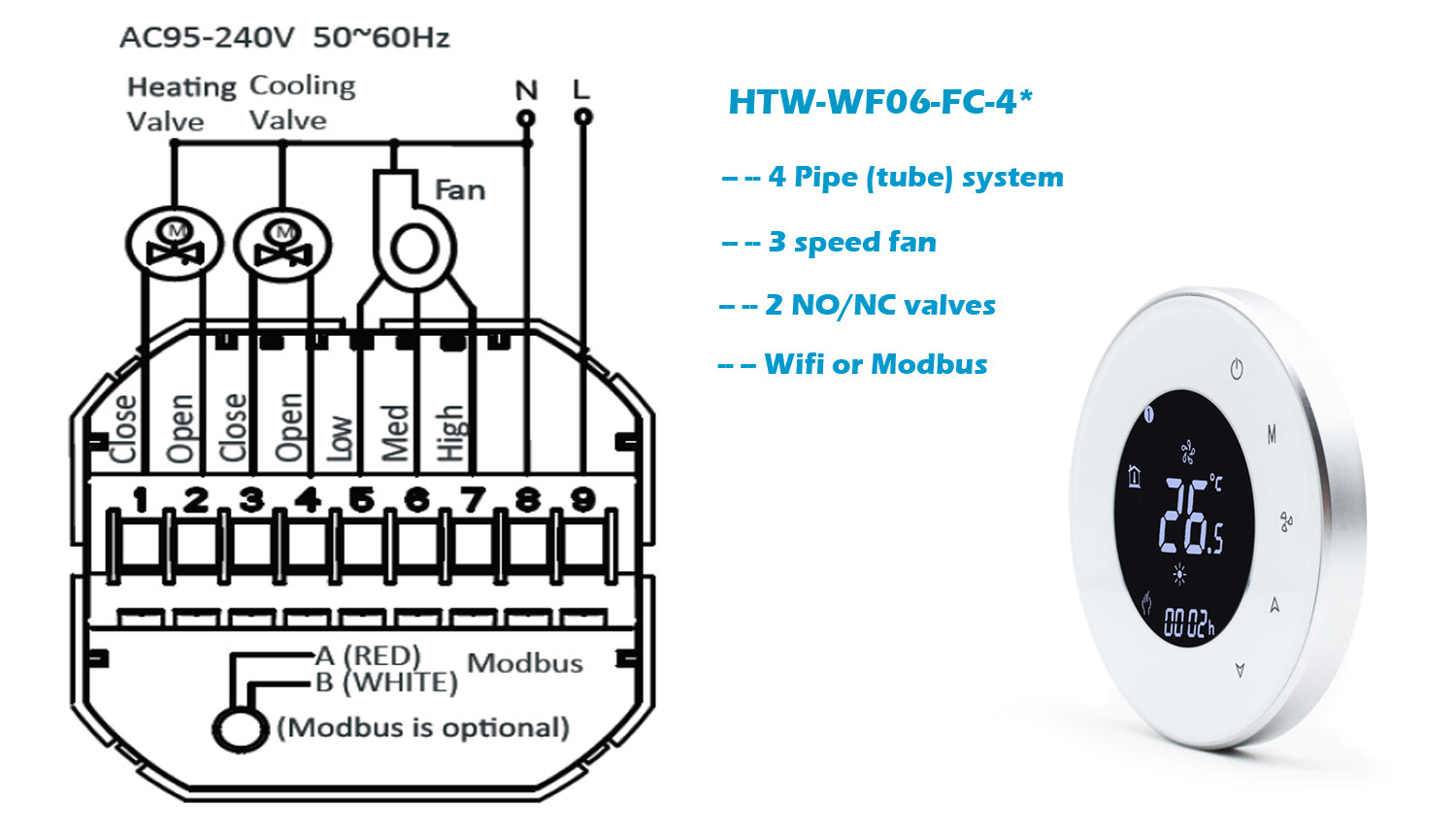

>> Tripical Wiring
>> Dimensions and Display
>> Installation
* Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
* Fix the installation plate onto the electric junction box with screws packed in the box.
* Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
