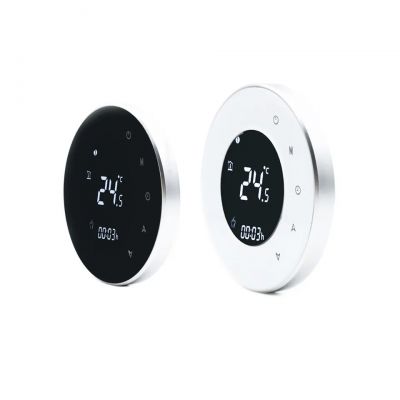

Google Nest Thermostat Smart WiFi Heatingvoice Control Tuya Supported Temperature Controller
HTW-WF06 series Smart Wifi thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals,Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating,Water Heating or Water/Gas Boiler systems.
Google Nest Thermostat Smart Wifi HeatingVoice Control Tuya Supported Temperature Controller
>> General
HTW-WF06 series Smart Wifi thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals,Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating,Water Heating or Water/Gas Boiler systems.
>> Feature
* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese,Vietnamese, Arabic, Korean)
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Easily Work with Amazon alexa, Google Assitant, IFTTT.
* Group Control in 1 App
* Fashion Sense of Science and Technology
|
HTW-WF06-**
|
Smart Wifi Thermostat | |||
| code | Application | |||
| -3A | Water Heating,3A,NC+NO+Com output terminals | |||
| -16A | Electric Underfloor Heating,16A,L+N line voltage output terminals | |||
| -NV | Water/Gas Boiler,3A,1 pair of Non-Voltage output terminals | |||
| e.g. HTW-WF06-3A refers to Water Heating,3A,NC+NO+Com output terminal | ||||
* Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
* Fix the installation plate onto the electric junction box with screws packed in the box.
* Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
