Product ID : HTW-WF17
Product Attributes :


The HTW-WF17 Series thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.





Product Description
HVAC System WiFi Heating Thermostat with Modbus Communication
Product Description

>> General

The HTW-WF17 Series thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.





>> Specification

Power supply
95~240VAC
Frequency
50/60HZ
Power Consumption
<1.5W
Accuracy
+/-1°F
Timing Error
<1%
Setpoint range
5~35°C
Display range
5-99°C
Installation
86 * 86mm Square or European 60mm Round Box
Protection Class
IP20
Current Load
5A
Sensor
NTC3950, 10K

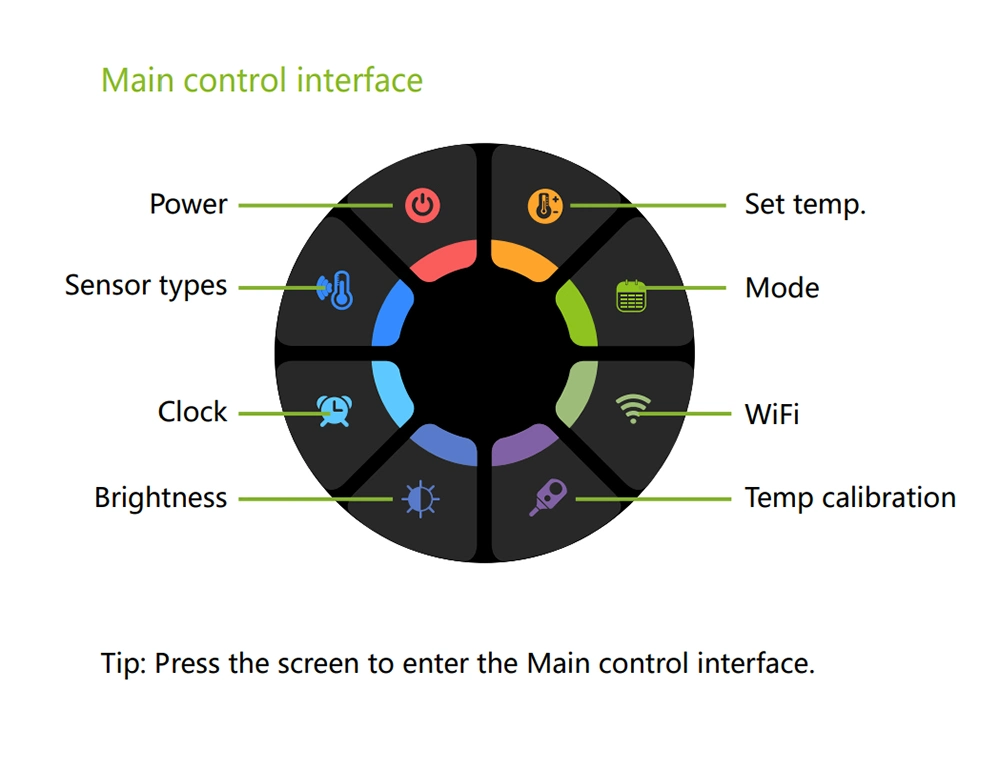

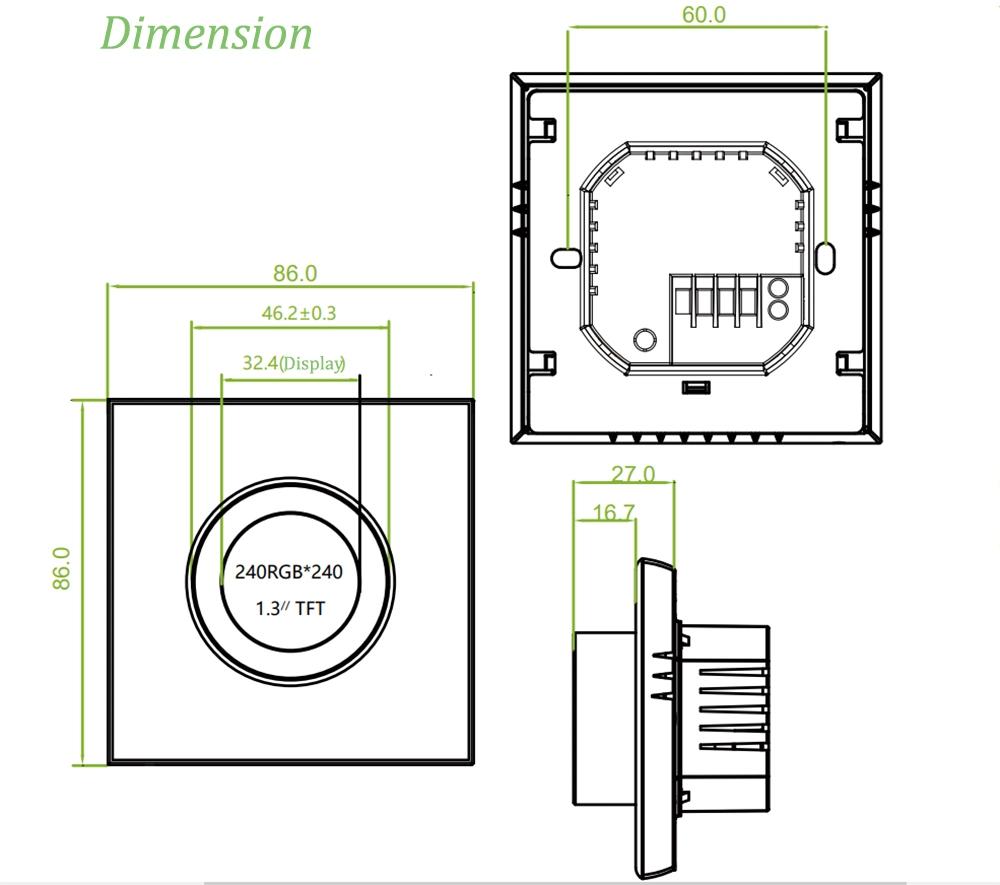

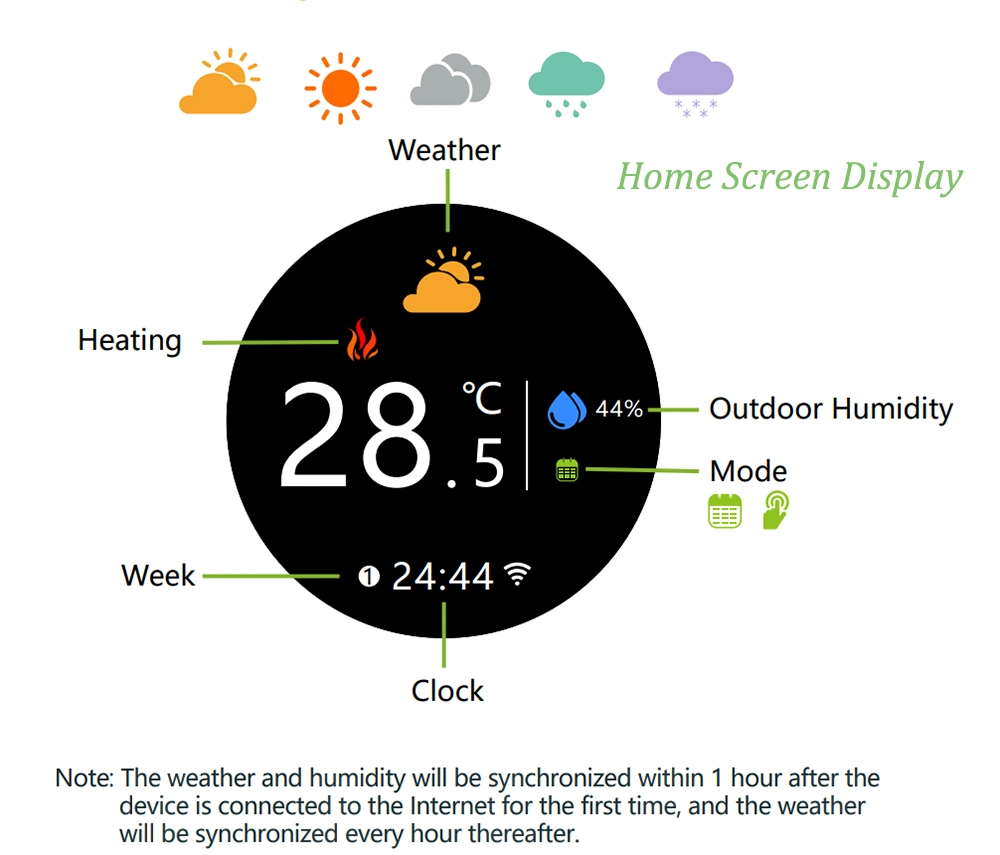

>>Dimensions and Display

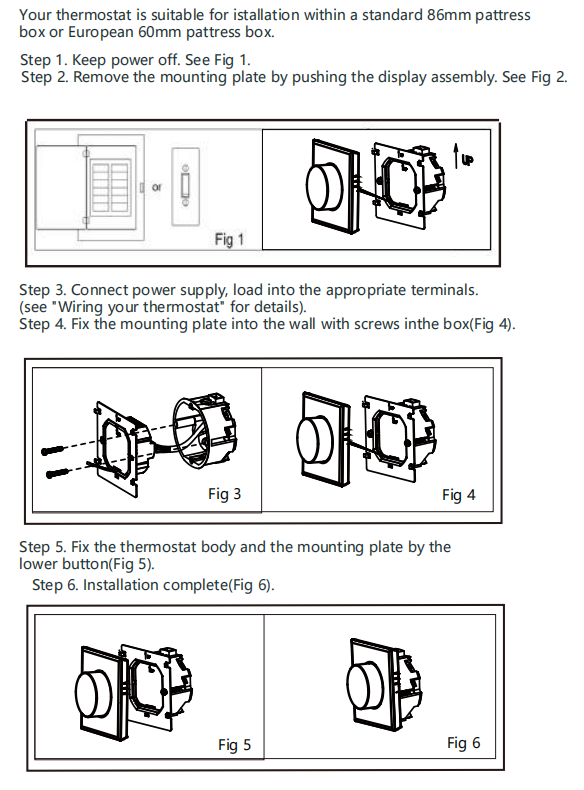

>>Installation
Packing & Shipping
Packing details
Unit Weight: 0.34KG/PC;
50 PCS/CTN;
Gross Weight: 17KG;
Paper box packing;
Box dimension: 65*34*26cm
Delivery time : Shipped in 15-20 days after payment
Shipping Method

We usually ship by

1.Sea shipping :25-30 days

2. Air shipping :5-7 days

3. Express delivery(DHL, UPS, FedEx, TNT etc.):4-7days
