With Keycard or External Sensor Tuya Thermostat Fan Coil Thermostat Room Thermostat

Product ID : HTW-FT03

Product Tags : Fan coil thermostat Room thermostat Wifi thermostat smart thermostat

Product Attributes :

HTW-FT03 series fan coil thermostat is widely used in many places to maintain an ideal room temperature purpose

Product Description

With Keycard or External Sensor Tuya Thermostat Fan Coil Thermostat Room Thermostat

>> General

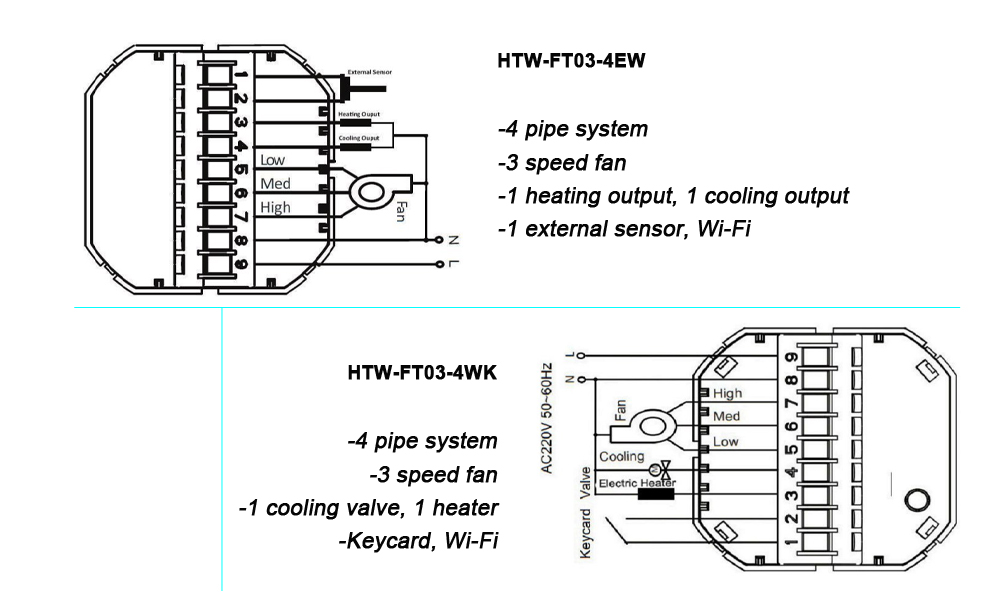

HTW-FT03-4EW/4WK

HTW-FT03 series fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.

>> Ordering Guide

HTW-FT03- **	-2	2 pipe(tube) system	-W	WiFi Connection
	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Weekly Programmable
	-N	Modbus RTU communication	-E	External Temp. Sensor
	-K	Key Card Occupancy Input	-24v	Power Supply with 24Vac
e.g. HTW-FT03-2K refers to application: 2 pipe system, key card function

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
