Modbus Thermostat Temperature Controller Smart Thermostat Fan Coil Thermostat with Optional Keycard Function

Product ID : HTW-FT03

Product Tags : Fan coil thermostat Room thermostat modbus thermostat

Product Attributes :

HTW-FT03 series fan coil thermostat is widely used to maintain an ideal room temperature purpose

Product Description

Modbus Thermostat Temperature Controller Smart Thermostat Fan Coil Thermostat with Optional Keycard Function

>> General

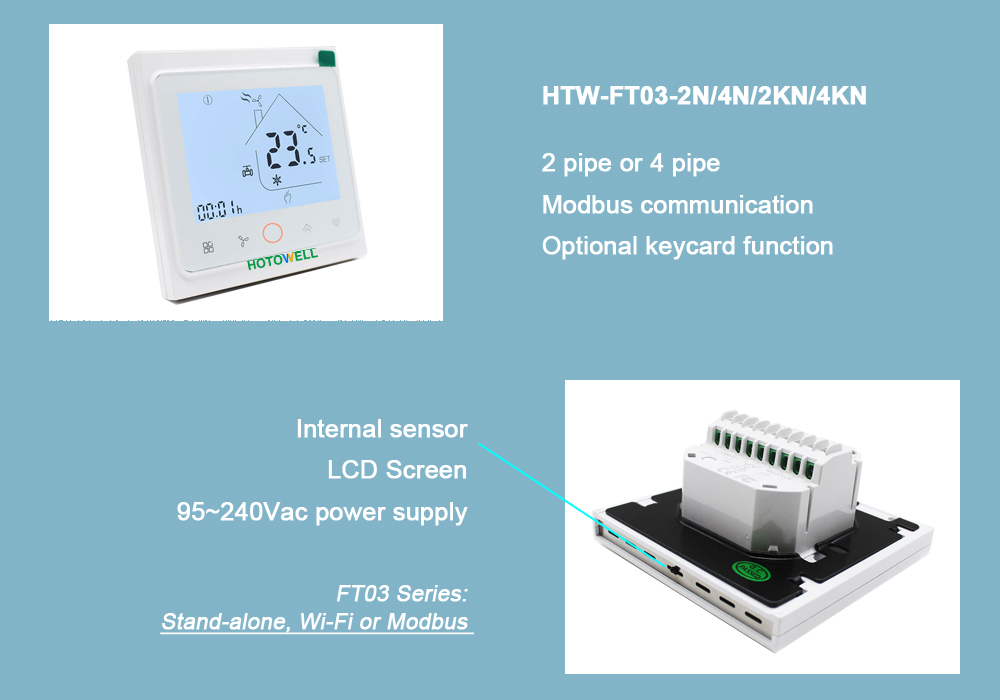

HTW-FT03-2N/4N/2KN/4KN

HTW-FT03 series fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.

>> Ordering Guide

HTW-FT03- **	-2	2 pipe(tube) system	-W	WiFi Connection
	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Weekly Programmable
	-N	Modbus RTU communication	-E	External Temp. Sensor
	-K	Key Card Occupancy Input	-24v	Power Supply with 24Vac
e.g. HTW-FT03-2K refers to application: 2 pipe system, key card function

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
