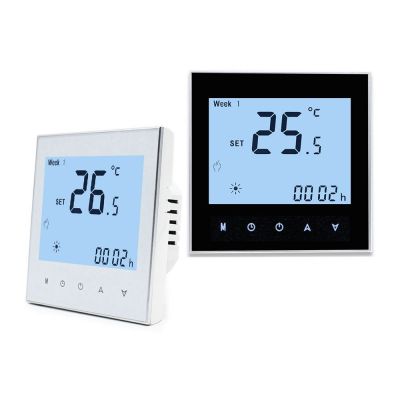

4 Pipe Fan Coil Thermostat Keycard Modbus Protocol Remote Control Room Thermostat

Product ID : HTW-FT03-4KN

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

HTW-FT03 series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.

Product Description

4 Pipe Fan Coil Thermostat Keycard Modbus Protocol Remote Control Room Thermostat

>> General

HTW-FT03-4KN
HTW-FT03 series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.

>> Ordering Guide

HTW-FT03-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac

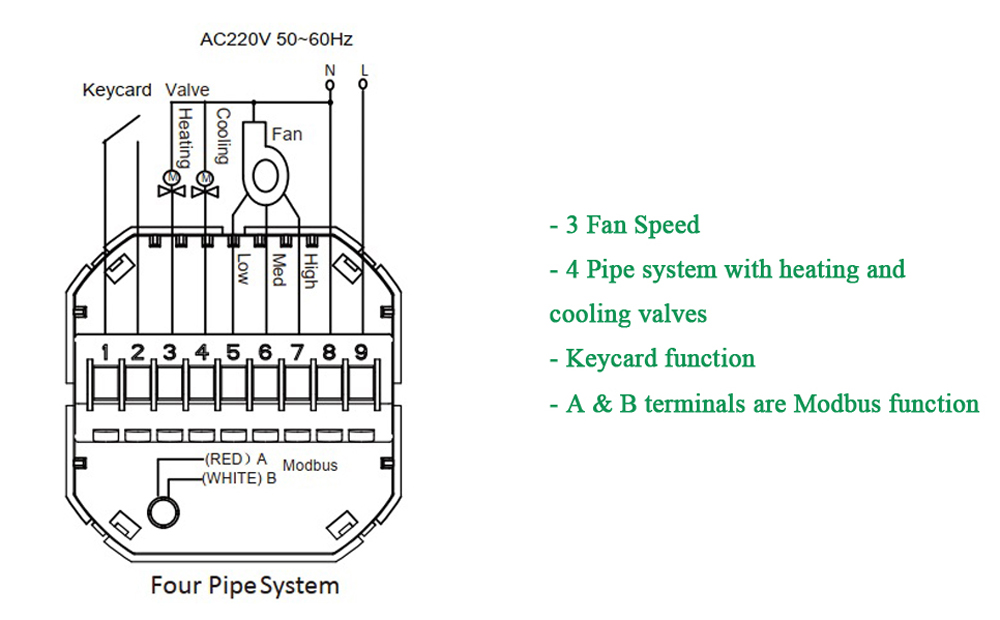

e.g. HTW-FT03-4KN: refers to application: 4 pipe, 3 fan speed, with Key-card and Modbus

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
