Wifi Thermostat Room Thermostat Heat Pump Thermostat Temperature Limitation Programmable Function

Product ID : HTW-81-FN7WF

Product Tags : Room thermostat Wifi thermostat heat pump thermostat smart thermostat

Product Attributes :

This smart FCU thermostat is designed to control the fans, valves, dampers or electric heater in a fan coil units and heating applications in industrial, commercial or residential environments.

Product Description

Wifi Thermostat Room Thermostat Heat Pump Thermostat Temperature Limitation Programmable Function

>> General

HTW-81-FN7WF
This smart FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environments.

>> Ordering Guide

HTW-81-FN7		Stand-alone Version
HTW-81-FN7WF		Wi-Fi Version

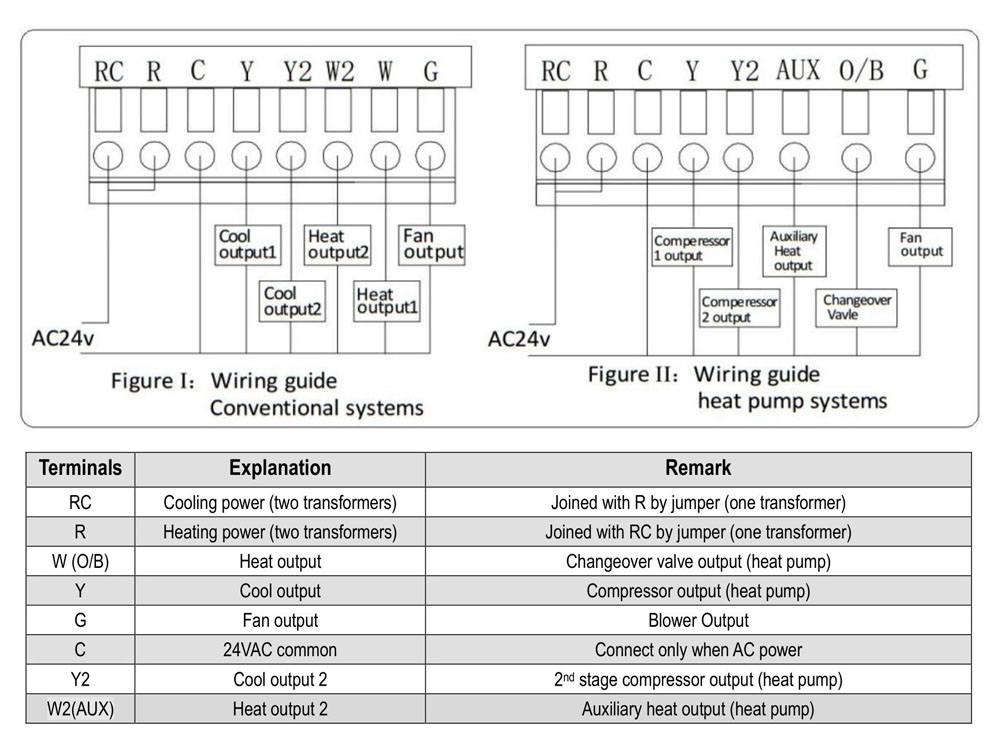

Wiring Instructions
Conventional		1H/1C, 1H/2C, 2H/2C, 2H/1C
Heat Pump		1H/1C, 2H/1C, 2H/2C, 3H/2C

>> Specification

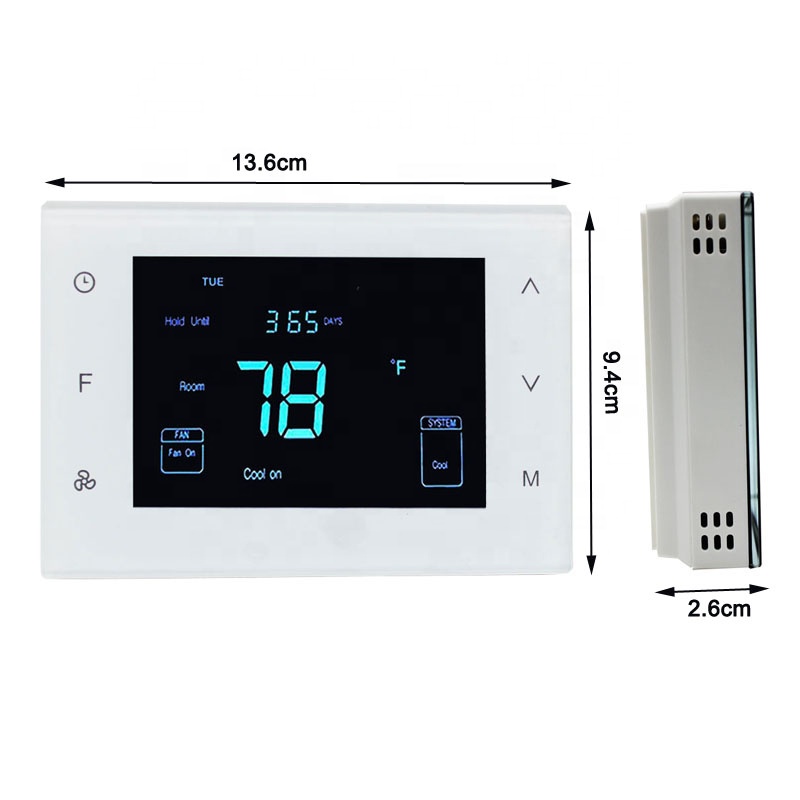

Voltage	24Vac, 50/60Hz	Dimensions	5.35x3.7x1.02’’(136x94x26mm)
Self-consumption	2W	Sensor	NTC Sensor
Temp. Setting Range	5~37℃ (41~98.6℉)	Accuracy	± 0.5℃
Output Ampere	1A (Resistive load)	Material	Toughened glass + PC
Wiring	By terminals	Mounting size	2.36’’(60mm) or 3.23’’(82mm)
