FCU Digital Programmable WiFi Room Heating Thermostat in Central Air Conditioning
Digital Programmable WiFi Thermostat
-WiFi connection, Tuya smartlife App control, weekly programmable
-Heating/cooling Fancoil system
-2 pipe or 4 pipe
-Negative LCD Display
-Touch screen
- 3 speed fan control
-On/Off motorized valve control
FCU Digital Programmable WiFi Room Heating Thermostat in Central Air Conditioning
Central Air Conditioning Digital Programmable WiFi Thermostat
>> General
HTW-EB-FC series fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

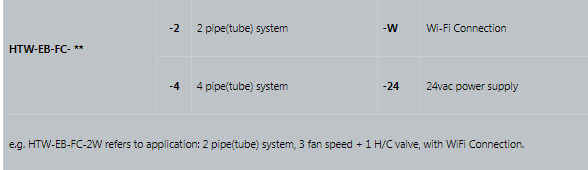

>> Ordering Guide

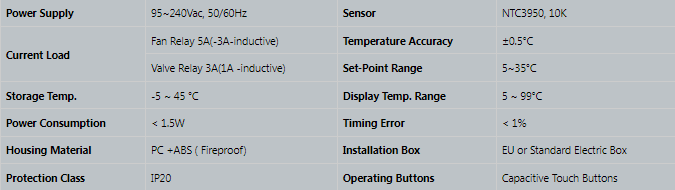

>> Specifications
>> Installation
* Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
* Fix the installation plate onto the electric junction box with screws packed in the box.
* Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
>> Company Profile

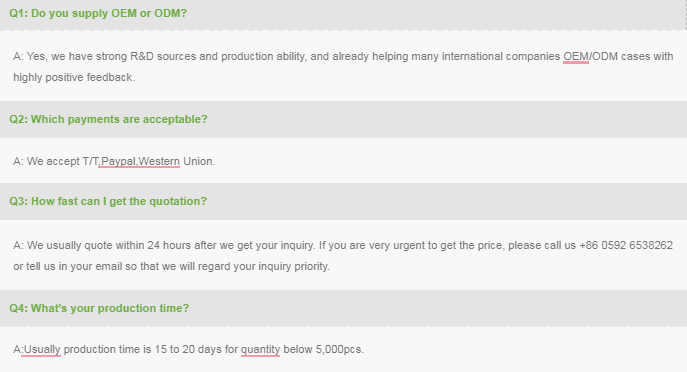

>> FAQs
Wifi Thermostat , FCU Thermostat , Digital Programmable Thermostat
