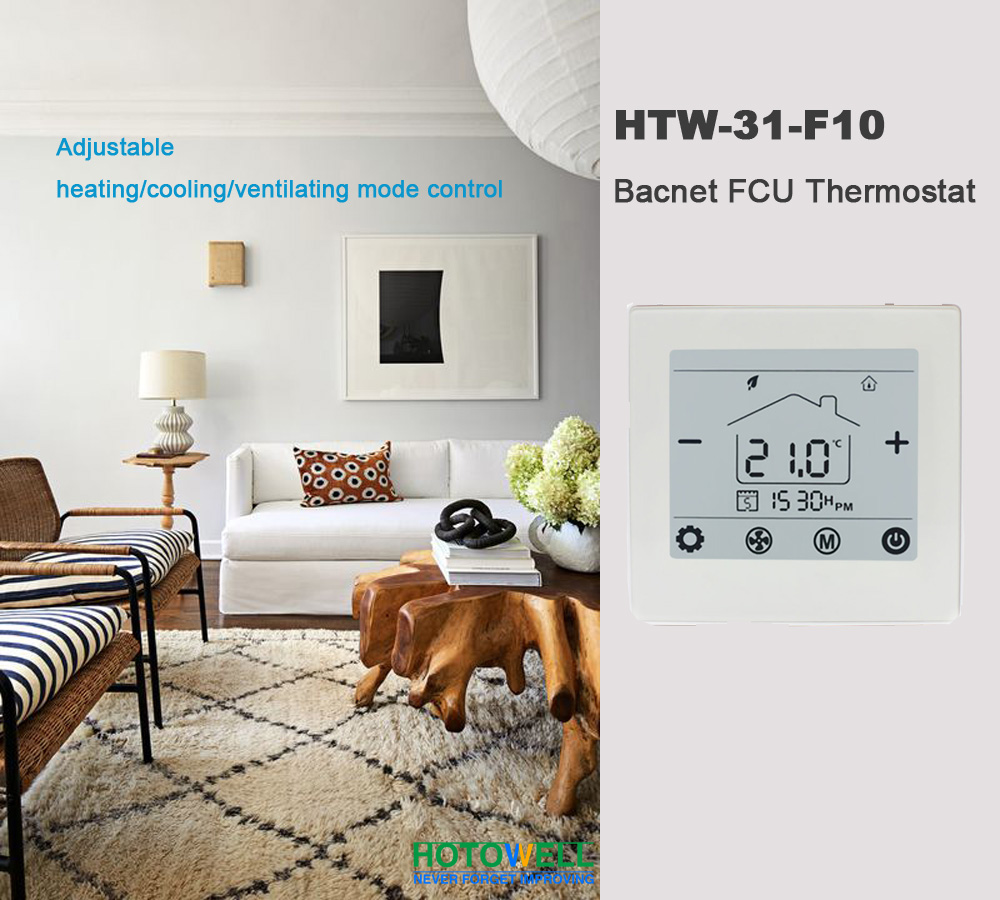

BACnet or Modbus Thermostat Hotowell F10 Digital 3 Speed Fan Coil Thermostat with 240Vac Power Supply

Product ID : HTW-31-F10

Product Tags : Bacnet thermostat Fan coil thermostat

Product Attributes :

This HTW-31-F10 digital thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environments.

Product Description

BACnet or Modbus Thermostat Hotowell F10 Digital 3 Speed Fan Coil Thermostat with 240Vac Power Supply

>> General

This HTW-31-F10 digital thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environments.

>> Features

•  Attractive modern styling

• Adjustable heating/cooling/ventilating mode control

• Adjustable manual 3-speed and automatic fan speed control

• 2 pipe or 4 pipe

• Bacnet

• Keycard(Optional)

• External sensor(Optional)

>> Technical Specification

Power supply	110-230V
Frequency	50/60HZ
Control algorithm	Pl, On/off output
Accuracy	+/- 1°C at 21 °C
Backlight	White
Power Consumption	1.5A
Setpoint range	5~80℃
Ambient	0~50℃
Protection Class	IP30
Relative Humidity	85%
Housing	ABS to UL94-5 fire retardantplastic
