Electric Underfloor Heating Thermostat WiFi
--16A current load thermostat for electric radiant floor heating control
--3A current load digital thermostat for water radiant floor heating control
--Temperature range: 5~35 degree centigrade.
--Digital display with white backlight
--Snap-in easy installation
--5 buttons simple operation
--MOQ 500units
Hotowell Heating Thermostat HTW-HT03 Series.pdf
>> General
WiFi electric underfloor heating room thermostat is more and more popular in floor heating system controls to replace old style thermostat. As WiFi digital thermostat allows users to control it through their smartphone which is quite convenient when they are outside home. Both floor heating and radiator are currently more choices of heating equipment. The floor heating is more comfortable and the radiator heats up quickly. In terms of household heating methods, there are usually water mixing devices to achieve mixed floor heating and radiator. One of the commonly used mixed solutions is Floor heating in public areas + room radiators. Generally, people at home stay in public areas such as guest restaurants. Floor heating does not affect the interior decoration effect, but can also meet the heating needs of the elderly and children. The radiator in the room can quickly heat up, which is very suitable for young people coming home from get off work. It is fashionable, comfortable and energy-saving. HTW-HT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.
>> Features
* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
*Snap-In Easy Installation
*Fit for EU & Standard Junction Electric Box
*Easily Work with Amazon alexa, Google Assitant, IFTTT.
*Group Control in 1 App
*Fashion Sense of Science and Technology
>> Specification
| Power Supply | 95~240Vac, 50/60H | Sensor | NTC3950, 10k |
| Current Load | 3A(-3A, -NV application),16A(-16A application) | Temperature Accuracy | ±0.5°C |
| Set-Point temperature Range | 5~35°C | Storage Temp. | -5 ~ 45 °C |
| Display Temp. Range | 5 ~ 99°C | Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | Protection Class | IP20 |
>>Wiring Diagram

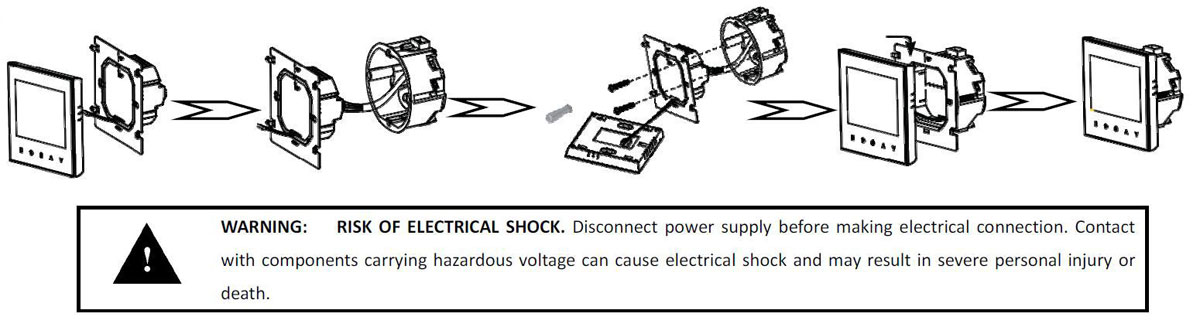

>> Thermostat Installation
nMake sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.
nTake off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
nFix the installation plate onto the electric junction box with screws packed in the box.
nFasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
>> Company Profile
>> FAQs
|
Q1: Do you supply OEM or ODM? |
|
A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback. |
|
Q2: Which payments are acceptable? |
|
A: We accept T/T,Paypal,Western Union. |
|
Q3: How fast can I get the quotation? |
|
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority. |
|
Q4: What’s your production time? |
|
A:Usually production time is 15 to 20 days for quantity below 5,000pcs.
|
