Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System
Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System

Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System

Product ID : HTW-TV02-VA
Product Tags : TRV actuator
Product Attributes :

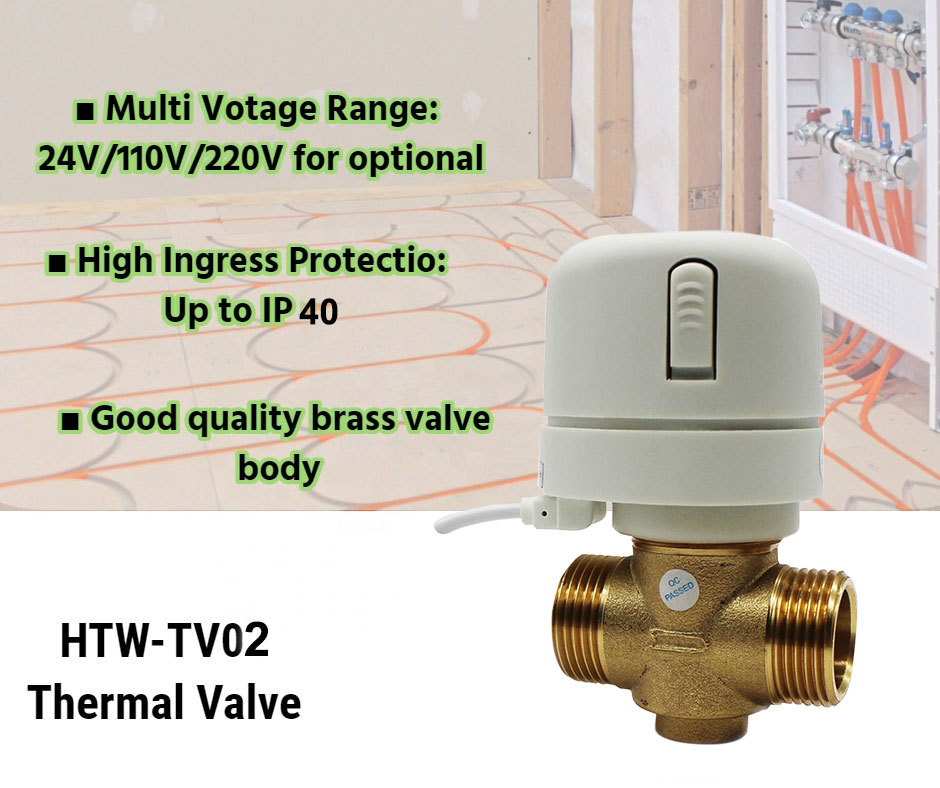

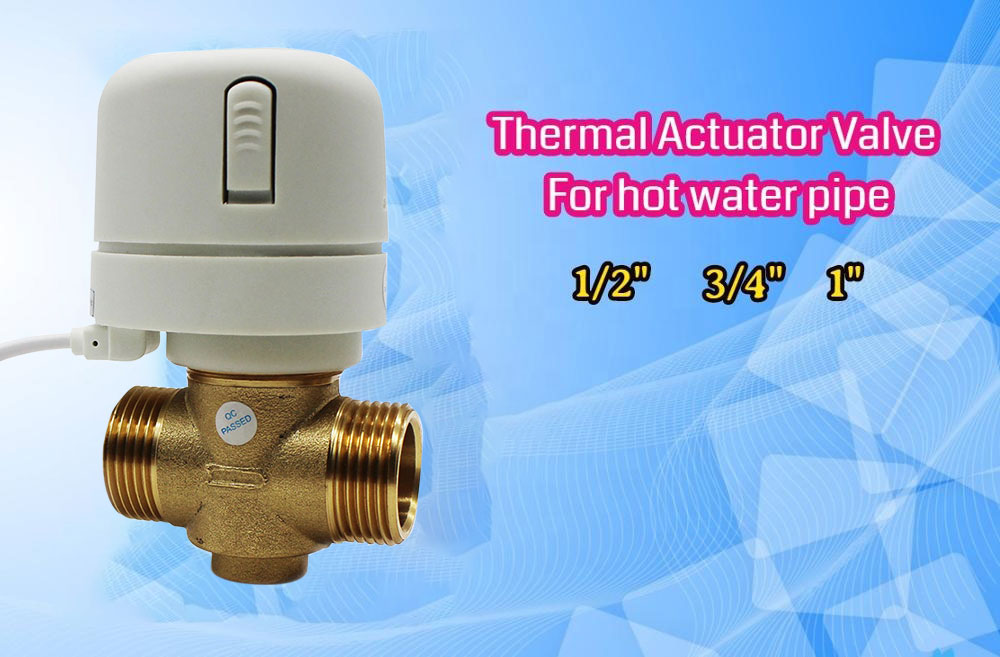

HTW-TV02-VA Thermal Valve Actuator is designed to control the open/close of the pipe of chilled/hot water for HVAC system so as to control the indoor temperature and maintain a thermal room temperature.

Product Description
Electric Thermal Valve Radiator Valve Chilled/ Hot Water for HVAC System
Product Description

>> General





HTW-TV02-VA Thermal Valve Actuator is designed to control the open/close of the pipe of chilled/hot water for HVAC system so as to control the indoor temperature and maintain a thermal room temperature.





>> Specification

Material
PA6110
Control Element
Electro-thermal Wax Sensor
Working Ambient Temperature
-0.5℃~60℃
First Fully Open
5~6.5 minutes (at 25℃)
Protection Class
IP40
Power Consumption
1.1VA
Lead Wire
1M Length (2-Core)

>>Application

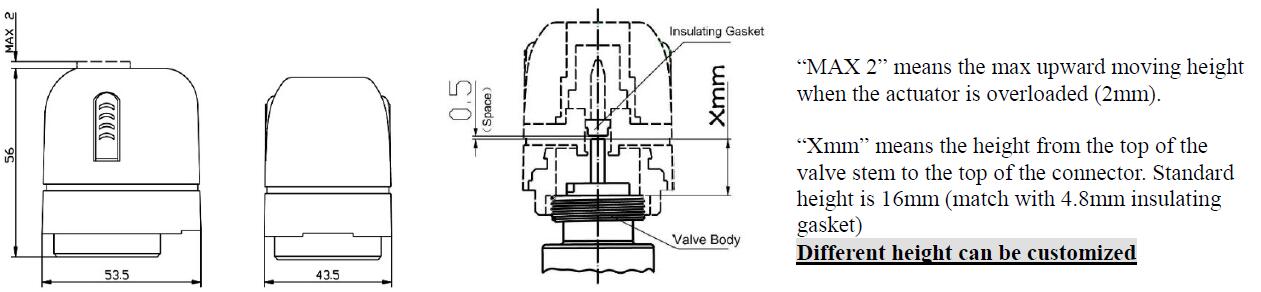

>> Dimensions and display
