Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve
Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve

Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve

Product ID : HTW-V61
Product Tags :
Product Attributes :

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.

Product Description
Product Description



Heating Zone 2 Port 24V Air Conditioner Electric Motorized Ball Valve



>> General

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.

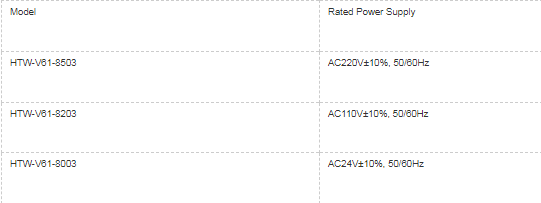

>> Models & Specifications of Actuator

>> Models & Specifications of Valve Body


>>Technical parameters

• Consumption 5W
•Drive style Bi-direction reversible motor drive
•Cooperate time with thermostat the valve open within 6s at 60HZ
•N.W.(Kg)-Actuator 0.35
•Medium Cool/hot water
•Liquid temperature 1~95°C
•Pressure(MPa) 1.6
•Environment temperature 0~65°C the max relative humidity, non-condensing
•Storage temperature -20~65°C the max relative humidity, non-condensing
>> Wiring Diagram
