Air Conditioner for Hotel Smart 3 Speed Fan Coil Thermostat with Keycard Window Card Switch Contact
Product ID : HTW-EW002
Product Attributes :

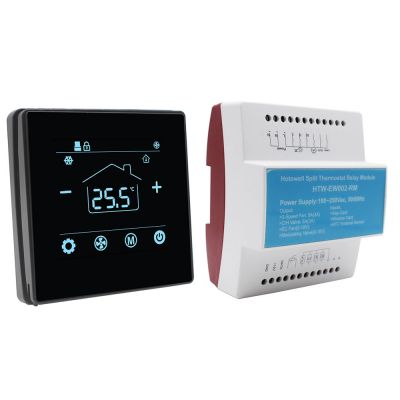

Noise-Free Hotel Room FCU Lighting Touch Screen Split Controller Thermostat consists of 2 parts:
HTW-61-EW002 control panel dispalay part
HTW-61-EW002-RM relay module part
Product Description
Air Conditioner for Hotel Smart 3 Speed Fan Coil Thermostat with Keycard Window Card Switch Contact
>>General
HTW-EW002 is a Touch Screen Split Thermostat Noise-Free Hotel Room Climate Controller application for water installations with fan coils. It is designed as a stand-alone device to operate the fan coil unit of a zone and includes a set of functions for zone occupancy and window position based climate control.
>>Display
>>Device Inputs and Outputs
Inputs:
1 Digital, keycard switch contact / lighting auxiliary contact
1 Digital, window contact
1 Analog, ambient temperature external sensor
1 Temperature sensor, built in on device front panel
Outputs:
3 Relays, fan coil speed (I,II,III)
1 Relay, chilled water valve
1 Auxiliary relay (hot water valve on 4 pipe systems / lighting on 2 pipe systems)
Inputs:
1 Digital, keycard switch contact / lighting auxiliary contact
1 Digital, window contact
1 Analog, ambient temperature external sensor
1 Temperature sensor, built in on device front panel
Outputs:
3 Relays, fan coil speed (I,II,III)
1 Relay, chilled water valve
1 Auxiliary relay (hot water valve on 4 pipe systems / lighting on 2 pipe systems)
1 EC Fan DC 0-10V
1 Modulating Valve DC 0/2-10V
1 Auxiliary relay for lamp
1 Auxiliary relay for lamp
>>Technical Specification
>>Wiring Diagram
