Voice Control and App Control Smart Thermostat Fan Coil Thermostat Wifi Thermostat for HVAC System

Product ID : HTW-EB-FC

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

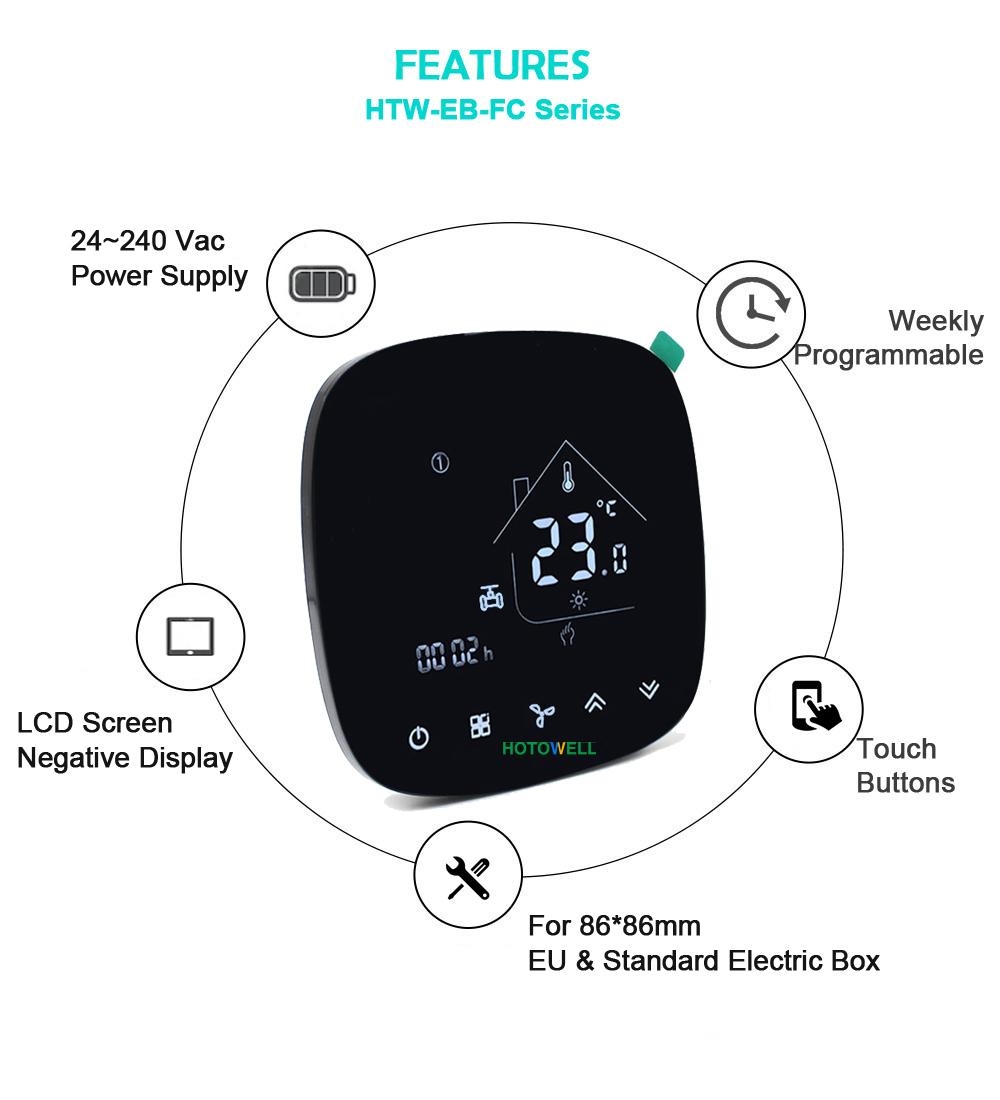

HTW-EB-FC series smart fan coil thermostat is widely used to maintain an ideal room temperature purpose

Product Description

Voice Control and App Control Smart Thermostat Fan Coil Thermostat Wifi Thermostat for HVAC System

>> General

HTW-EB-FC series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.

>> Ordering Guide

Please identify the specific thermostat according to your need or just contact us!
HTW-EB-FC-**	2	2 pipe(tube) system	W	Wi-Fi
	4	4 pipe(tube) system	P	Programmable
	M	Modulating output	E	External Sensor
	N	Modbus communication	24	Power Supply with 24Vac
e.g. HTW-EB-FC-4W refers to application: 4 pipe(tube) system, 3 fan speed, with Wi-Fi connection.

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
