110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller
110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller 110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller 110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller 110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller 110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller

110V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller

Product ID : T6861
Product Tags : Fan coil thermostatRoom thermostat
Product Attributes :

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system.Including

2-pipe cool only/heat only/manual changeover and 4-pipe manual or automatic changeover
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Fan speed can be selected to automatic or manual 3-speed control mode. In ventilation mode, fan only support manual speed control.
Product Description
10V 220V Digital Thermostat T6861 Fan Coil Thermostat for Room Temperature Controller
Product Description

>> General





This digital thermostats are designed for application of 3-speed fan and valves in fan coil system.Including
2-pipe cool only/heat only/manual changeover and 4-pipe manual or automatic changeover
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Fan speed can be selected to automatic or manual 3-speed control mode. In ventilation mode, fan only support manual speed control.

>> Specification

Power supply
110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency
50/60HZ
Control algorithm
Pl, On/off output
Accuracy
+/- 1°C at 21 °C
Rating capacity
For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times
100000
Setpoint range
10-32°C
Display range
0-37°C
Installation
Installed on 86x86mm junction box or US2X4 inch
Protection Class
P20
Environmental
Operation temperature-18~49°C
Conditions
Shipping temperature -35~65°C, Relative humidity 5-90%

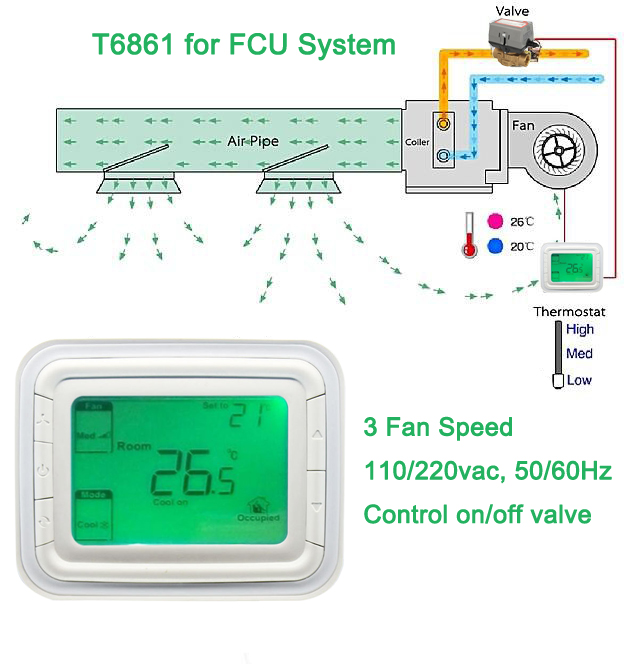

>>Application

>> Model Summary
HTW-51-1000
Horizontal/Vertical
White Frame Backlight
Time on/off
2-pipe/4-pipe
Power supply
Energy Saving
Ventilation
Manual/Automatic Fan
Remote Sensor
H2WB
Horizontal
Blue
Y
2\4
220
Y
Y
Y
Y
V2WB
Vertical
Blue
Y
2\4
220
Y
Y
Y
Y
H2WG
Horizontal
Green
Y
2\4
220
Y
Y
Y
Y
V2WG
