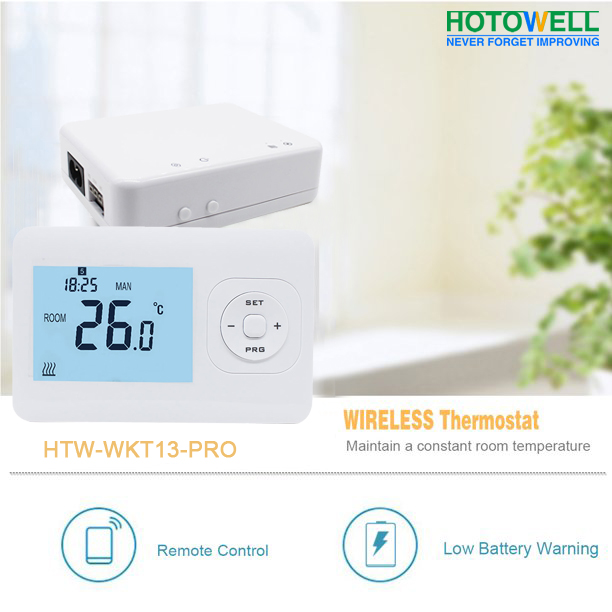

British Control Gas Boiler Wireless Smart Room Thermostat

 >> General

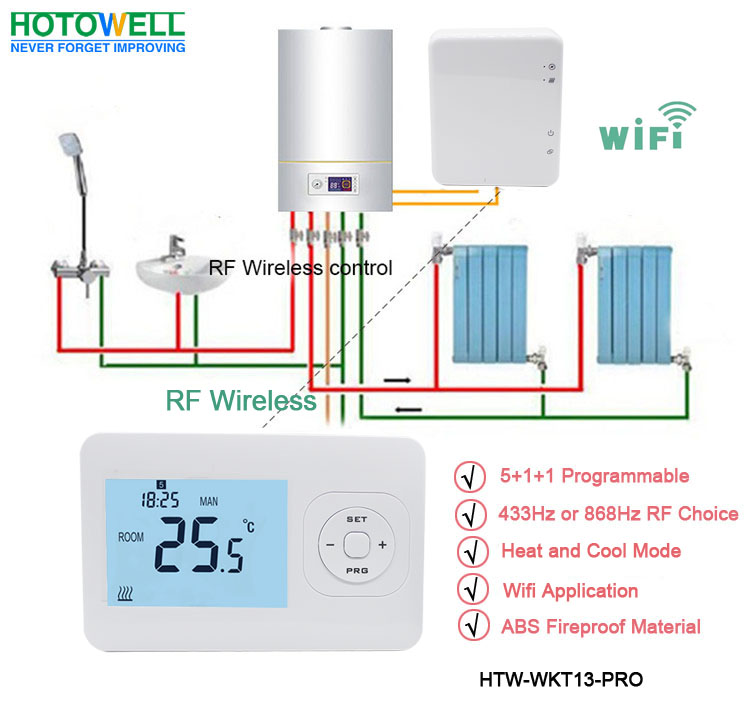

This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.

 >> Features

 >> Specification

Thermostat operating voltage:               2 x AA1.5 V, alkaline batteries.

Backup storage:                                     EEPROM

Receiver operating voltage:                   230 VAC, 50/60 Hz

Maximum voltage / (ohmic) load:            250 VAC/10 A.

Frequency:                                             868 MHz

Channel selection:                                  By programming the thermostat and the receiver.

Switching options:                                   7day, 4 periods each day.

Receiver switch contacts:                       NO and NC.

Temperature settings:                            5°C ~ 35°C, 0.5°C increments.

Accuracy:                                               +/- 0.5°C

Thermostat dimensions:                        Surface mounted, 135mm x 87.5 mm x 23.2mm.

Receiver dimensions:                            Surface mounted, 86mm x 86 mm

Color:                                                    White

IP protection rating:                               20.

Certification:                                          CE, Rohs, R&TTE

 >> Display and Buttons

 >> Wiring Diagram
