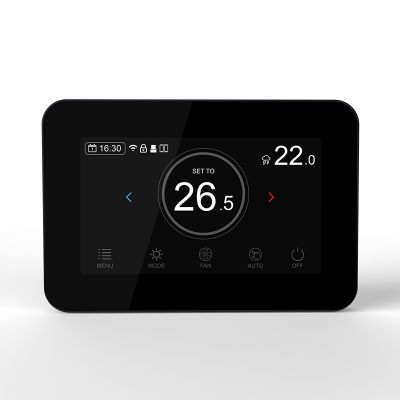

2 stage 3H2C Heat Pump Wifi Room Thermostat for HVAC System
HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
Single&Multi-Stage Thermostat HTW-81-FN7-compressed.pdf
>> General
HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
>>Features
Elegant design with 4.3” LCD display
Individual programming Schedules:7 days*4 time periods
Tempered glass panel with capacitive touch buttons
NTC thermistor
>>Specification
>>Power supply： AC24V, 50Hz
>>Power dissipation：2W Dimension: 136*94*26mm Output: <1A (Resistant load)
>>Temperature range: 41ºF -99ºF (5ºC -37ºC)
>>Display accuracy: ±0.5 ºC
>>Wiring: Terminals
>>Installation dimension: 60mm / 82mm (hole pitch)
>>Application
>>1H/1C (conventional)
>>1H/2C (conventional)
>>2H/2C (conventional)
>>2H/1C (conventional)
>>1H/1C (heat pump)
>>2H/1C (heat pump)
>>2H/2C (heat pump)
>>3H/2C (heat pump)
>>Wiring Diagram
>>Terminal Instruction
>>Controlling Type Configuration
