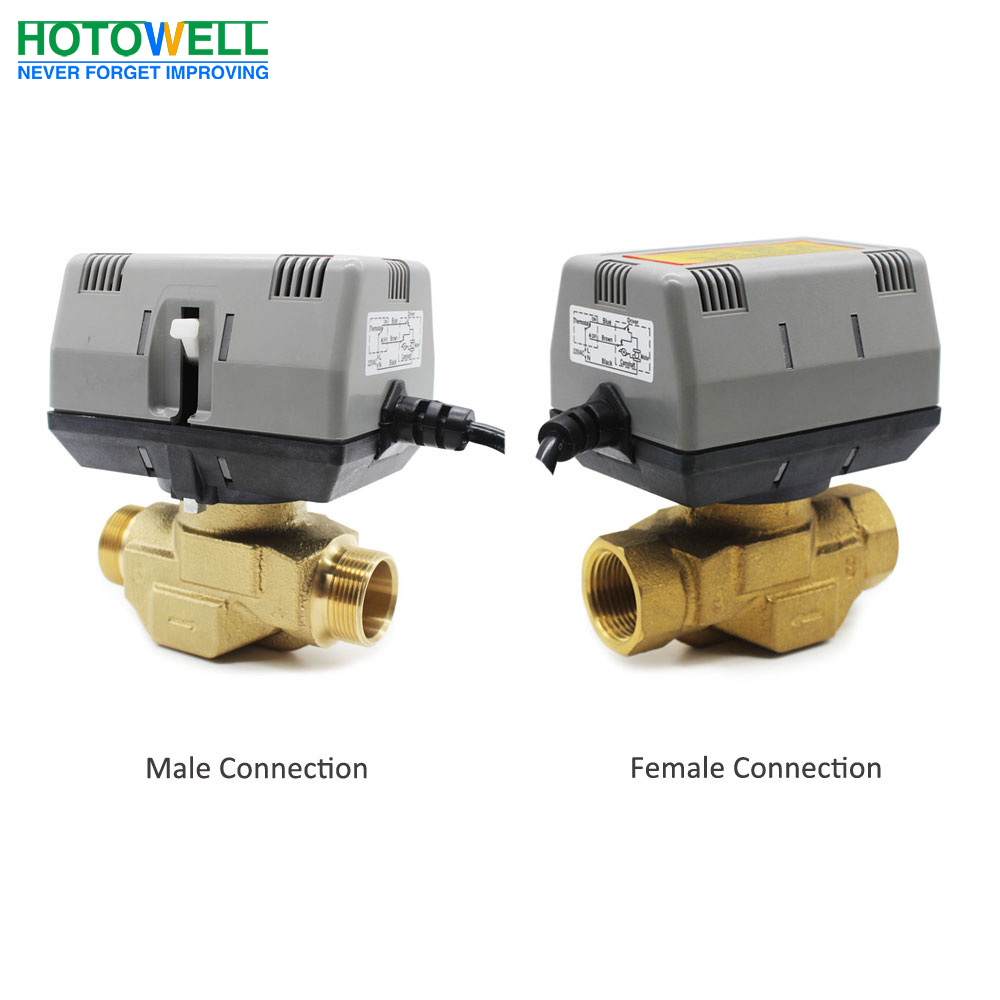

3 wire 3 way Central Heating Motorized Male/Female Valve for hvac system

Motorized Valve-HTW-V61 Series.pdf

 >> General

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or

air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body.
The room temperature could be controlled in the set-point through turn-on or turn-off of valve.

>>Models & Specifications of Actuator

Model                   Rated Power Supply

HTW-V61-8503    AC220V±10%, 50/60Hz

HTW-V61-8203    AC110V±10%, 50/60Hz

HTW-V61-8003  AC24V±10%, 50/60Hz

>>Models & Specifications of Valve Body

Model                  Configuration                                    Kvs                        Connection Type           Differential Pressure(MPa)

HTW-V61-215 normally closed two-way                       2.0                                  G1/2                     0.20

HTW-V61-220  normally closed two-way                      3.2                                  G3/4                     0.10

HTW-V61-225 normally closed two-way                       5.7                                  G1                        0.06

HTW-V61-315  mixing three-way                                  3.2                                  G1/2                     0.20

HTW-V61-320 mixing three-way                                   4.6                                   G3/4                    0.10

HTW-V61-325  mixing three-way                                  4.8                                    G1                       0.06

>>Technical parameters

• Consumption  5W

•Drive style  Bi-direction reversible motor drive

•Cooperate time with thermostat the valve open within 6s at 60HZ

•N.W.(Kg)-Actuator 0.35

•Medium Cool/hot water

•Liquid temperature  1~95°C

•Pressure(MPa)  1.6

•Environment temperature  0~65°C the max relative humidity, non-condensing

•Storage temperature  -20~65°C the max relative humidity, non-condensing

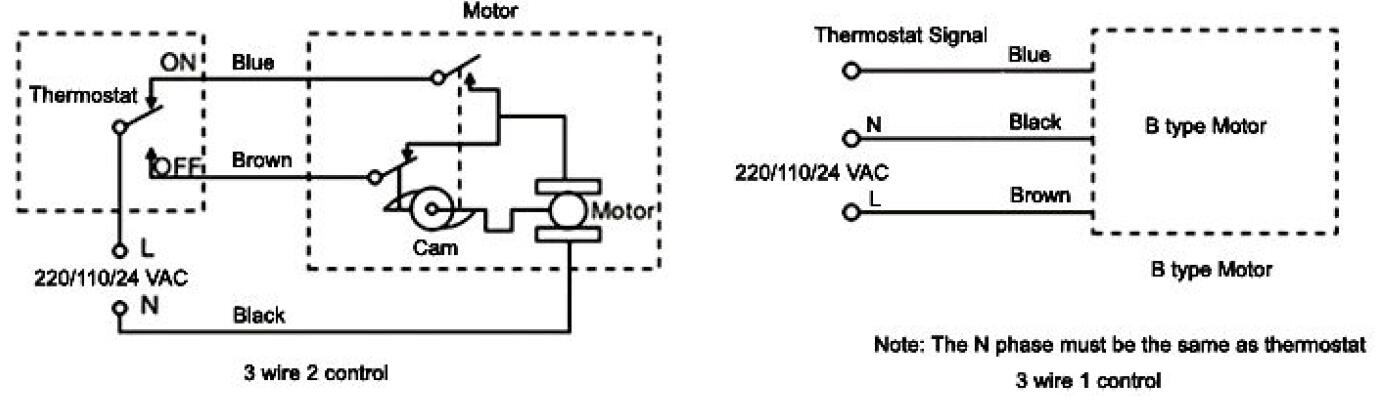

>>Wiring Diagram

>>Model Comparison Table

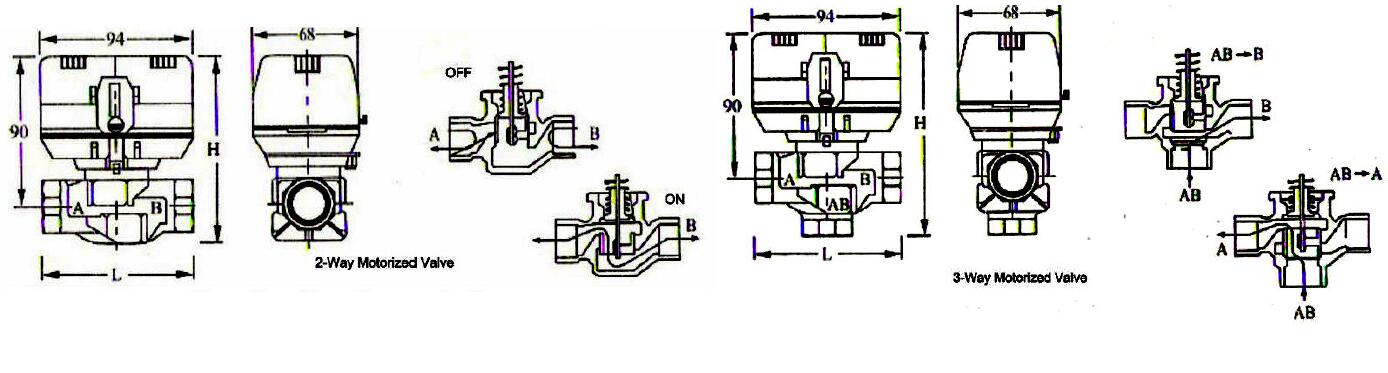

>>Dimensions

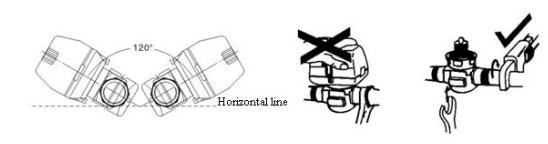

>>Installation
