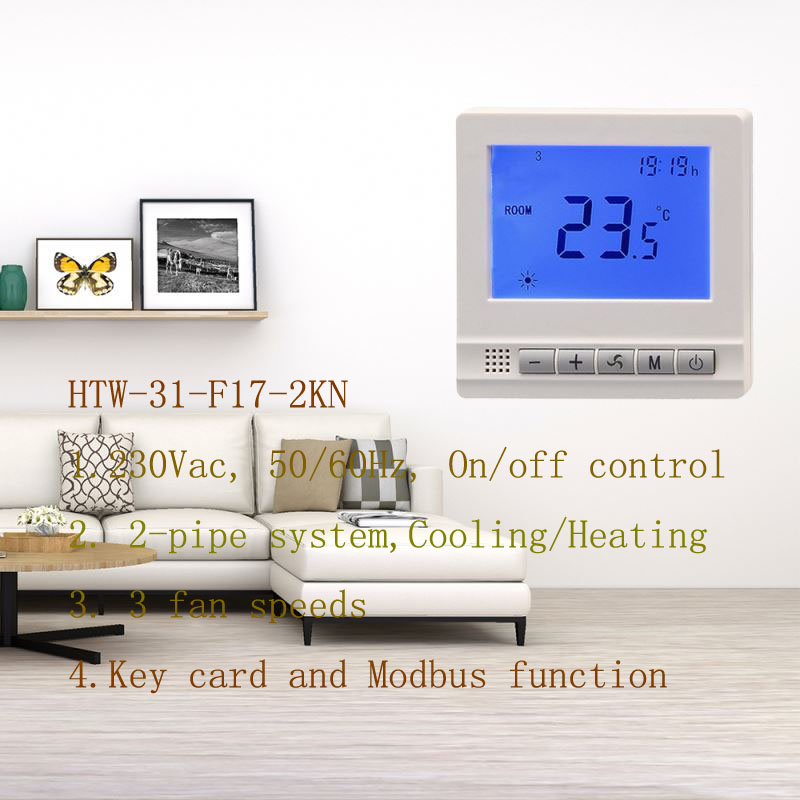

Modbus Remote Control Digital 3 Speed Fan Coil Thermostat
These kind of digital thermostats, applying the most advanced and international standardized microcomputer control chip, measures the indoor temperature by the in-built NTC high-precision sensor.

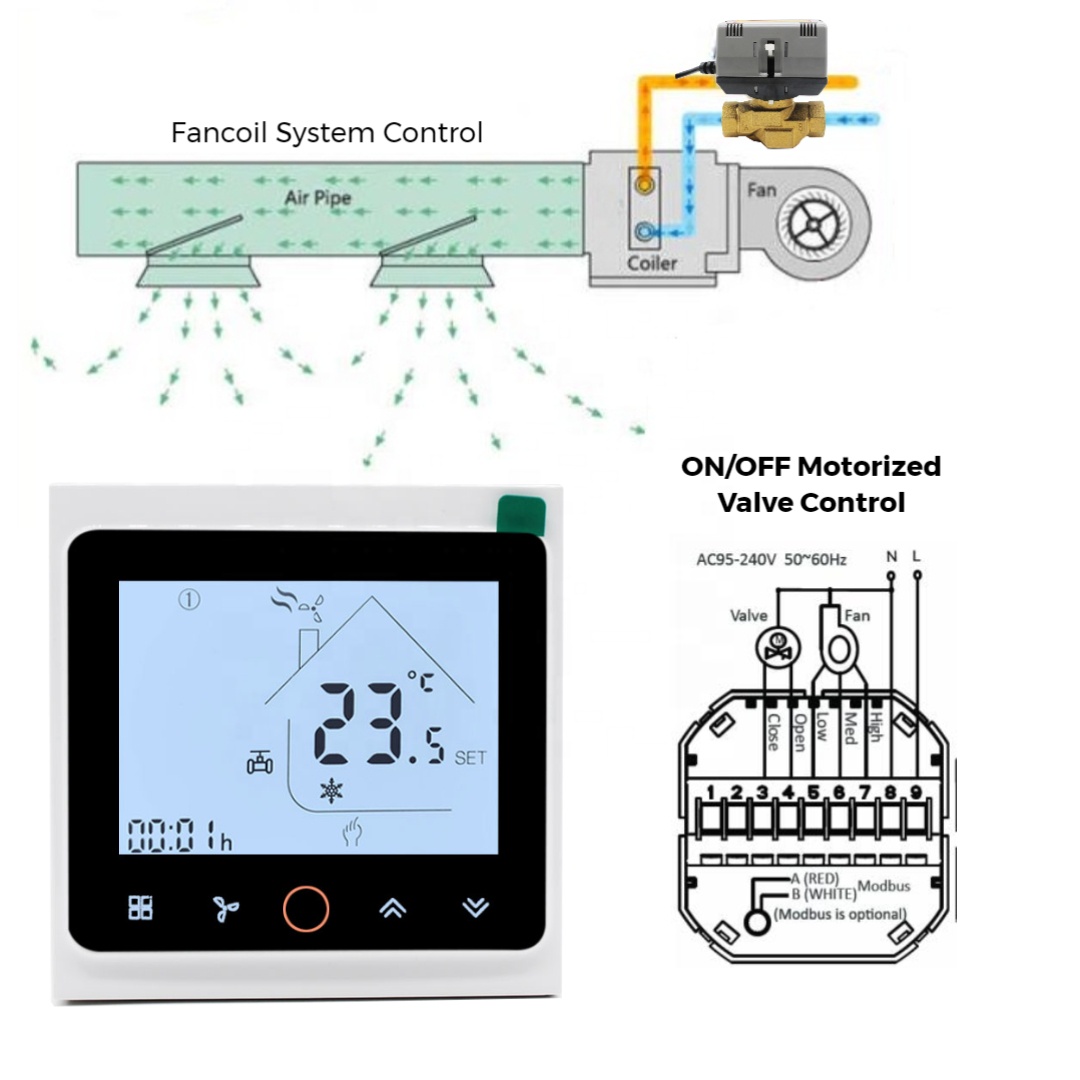

It can always compare with the setting temperature, and automatically regulate the heating/cooling air input or switch on/o ff the motorized zone valve, so as to keep room in a certain temperature.
FCU Digital Thermostat With Modbus Communication-HTW-31-F17 DatasheetTechnical Information.pdf
>> General
These kind of digital thermostats, applying the most advanced and international standardized microcomputer control chip, measures the indoor temperature by the in-built NTC high-precision sensor.
It can always compare with the setting temperature, and automatically regulate the heating/cooling air input or switch on/o ff the motorized zone valve, so as to keep room in a certain temperature.
>>Features
>>Technical parameters
• Voltage:100~230V, 50/60Hz, 24Vac optional
• Load Current:3(1)A
• Consumption: <1.5W
• Temp. Setpoint Range:5~35℃
• Accurancy:±0.5℃
• Ambient Temp. Range:0~50℃
•Housing:ABS to UL94-5 fire retardant plastic
