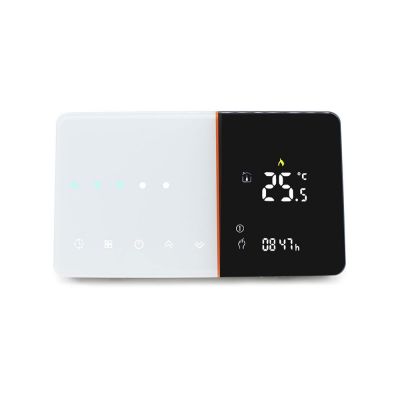

230VAC Fan Coil Thermostat Smart Room Thermostat
Product ID : HTW-WF01-FC
Product Tags :
Fan coil thermostatRoom thermostatThermostatWifi thermostathotel thermostatmodbus thermostatsmart thermostat
Product Attributes :
HTW-WF01-FC series smart wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Product Description
230Vac Fan Coil Thermostat Smart Room Thermostat Wifi Thermostat
>> General
HTW-WF01-FC series smart wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> Features
--47 Mainstreaming Language
--Customized OEM Logo
--Work with Amazon Echo, Google Home, Tmall Genie, IFTTT
--Easy Installation
--Black/ White colors
--Fit for EU & Standard Junction Electric Box
>> Specification
>> Features
--47 Mainstreaming Language
--Customized OEM Logo
--Work with Amazon Echo, Google Home, Tmall Genie, IFTTT
--Easy Installation
--Black/ White colors
--Fit for EU & Standard Junction Electric Box
>> Specification
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | Fan Relay 5A(3A-inductive) | Temperature Accuracy | ±0.5°C or ±1ºF |
| Valve Relay 3A(1A-inductive) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
>> Dimensions and Display
