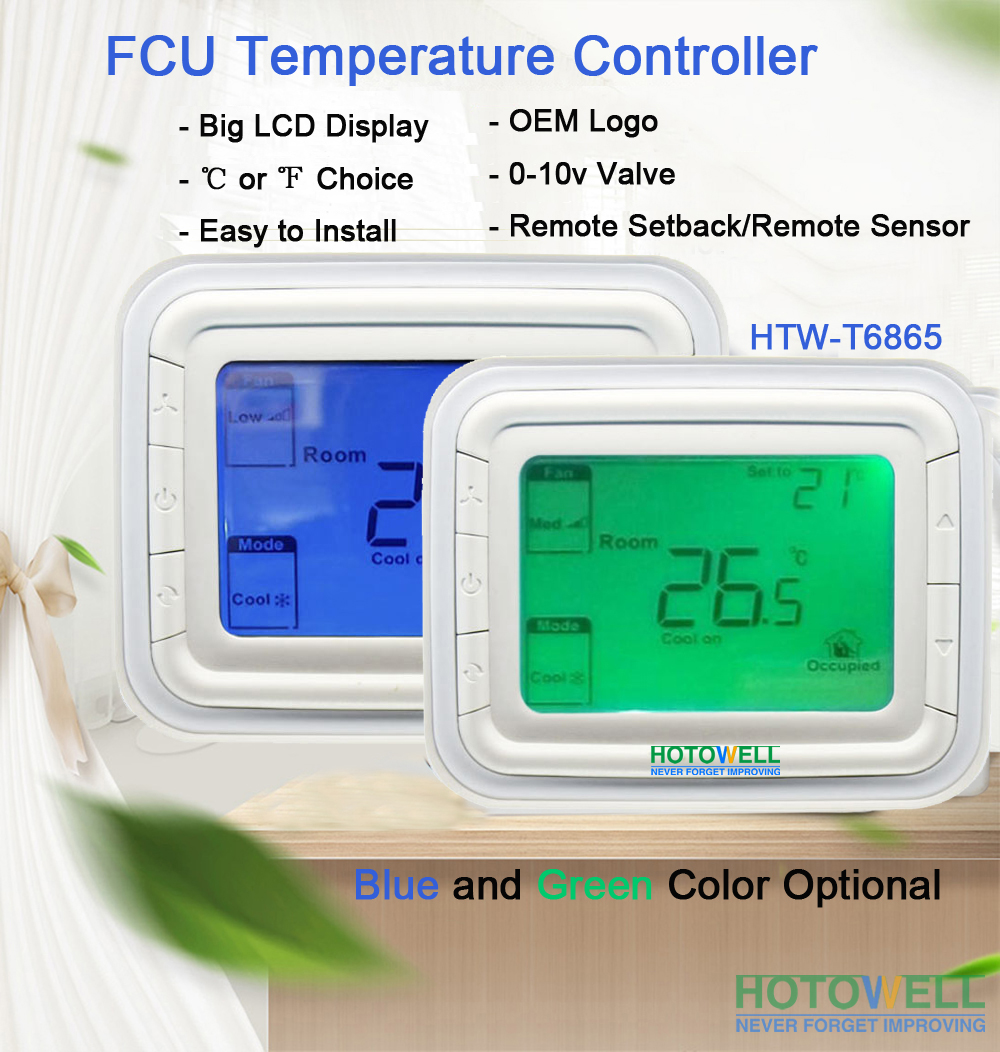

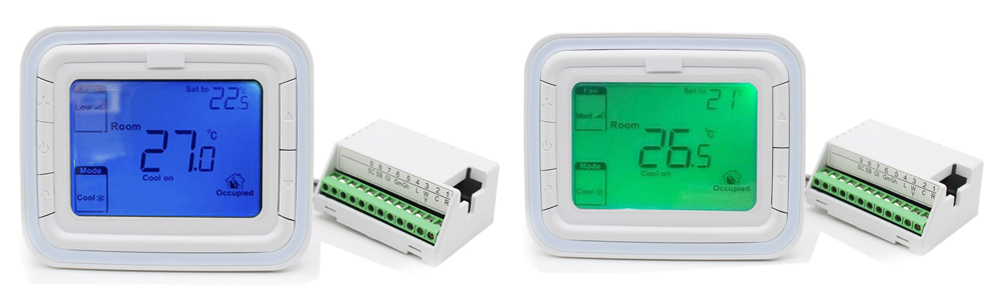

0-10V Room thermostat T6865 Digital Temperature control Thermostat for FCU System

0-10V Room thermostat T6865 Digital Temperature control Thermostat for FCU System

Product ID : HTW-T6865

Product Tags :

Product Attributes :

T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system. Including: --2-pipe cool only/heat only/manual changeover --Fan speed can be selected to automatic or manual 3-speed control mode. --In ventilation mode, fan only support manual speed control.

Product Description

0-10V Room thermostat T6865 Digital Temperature control Thermostat for FCU System

Product Description

>> General

T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system. Including: --2-pipe cool only/heat only/manual changeover --Fan speed can be selected to automatic or manual 3-speed control mode. --In ventilation mode, fan only support manual speed control.

>> Specification

Power supply		24 (+/-10%) VAC
Frequency		50HZ
Fan load rating		230(+/-10%)VAC, 4(2)A
Accuracy		+/- 1°C at 21 °C
Cycle times		100000
Setpoint range		10-32°C
Display range		0-37°C
Installation		Installed on 86x86mm junction box or US2X4 inch
Protection Class		IP20
Environmental		Operation temperature-18~49°C
Conditions		Shipping temperature -35~65°C, Relative humidity 5-90%

>>Terminal Disgnations

>> Model Summary

Classic Hotowell Thermostat
