The Best Fan Coil Hotel Thermostat For Climate and Lighting Control

Hotowell Noise-Free Split Control HTW-EW002 is a complete HVAC solution device that is designed for room climate/lighting control at hotels, offices and homes with water and fan coil installations. The device includes all the necessary inputs and outputs to operate a 2 pipe or a 4 pipe system. With up to 24 terminals in the thermostat replay part, HTW-EW002 hotel AC thermostat can control one/ two on/off valves, a 3 speed fan motor, EC fan motor, modulating valve and even lighting to maintain room comfort to meet guests requirements.

Why are we confident to say that the hotel FCU thermostat HTW-EW002 is a complete HVAC solution?

1.     Noise Free when controling the HVAC fan coil system, to suit luxury hotel service concept-bring guest the most high-end experience.

Normally, thermostat is designed as one device but not divided into two parts. When thermostat is switching working status, a “Ticktock” sound always heard which is a really noise especially in sleeping time or rest time. Hotowel newly launched hotel AC touch thermostat HTW-EW002 can well improve guests’ experience in this aspect. It is designed as display part and relay module part. The display part will be installed in hotel room for guests to control room temperature, and the replay module part can be installed far away from the display part, maybe outside the room or the room where the “Ticktock” sound will not be heard by guests.

2.     3-wires Power Line Carrier(PLC) technology connection, up to 50 meters non-loss communication between display part and replay module part.

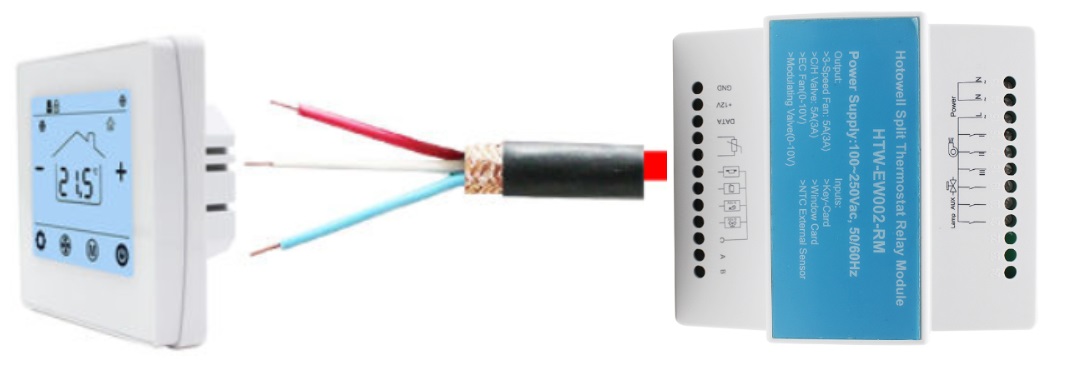

Power line communication (PLC), also called power line carrier, is a terms describing several different systems for using electric power lines to carry information over the power line, it is a kind of data communication method. Due to the PLC communication technology, the thermostat display part and the relay module part are communicated via 3 wires(GND, 12V, Data), can up to 50 meters long distance. Many hotels are fed up with too many wires which go to the wall, then Hotowell HTW-EW002 new launched FCU split model will be a nice choice to replace your old ones. The display part is installed inside hotel room, but the relay module part can be deployed outside the room or somewhere far away from guests’ reach, and only 3 wires go between display part and replay module part.

3.     Climate control with one lighting (auxiliary) control in 2 pipe fan coil system application.

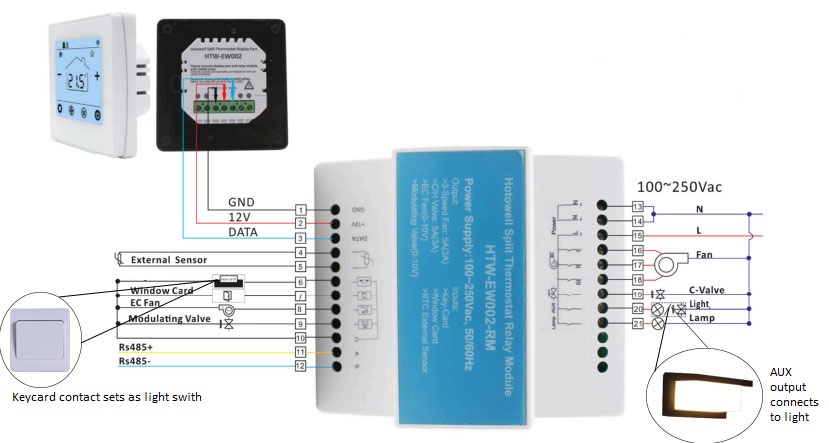

In your existing hotels, if you want to add one light to the room but there is no lighting switch installation hole left, and at the same time, you mean to replace thermostat, our HTW-EW002 thermostat or HTW-61-EW001 cooling/heating controller thermostat will help. In the replay module part, it has 3 speed fan relay, valve replay, power inputs etc. which totally owns 24 terminals. In 2 pipe system, the keycard function is no need and you want to control light, then you can connect light to AUX(terminal 20) and set keycard terminals(terminal 8 and 7) as light switch through ISU process.

if interested to talk more in details, welcome to contact Ms. Tiana for more information.
