Surface-mounted wired gas boiler heating thermostat
Surface-mounted wired gas boiler heating thermostat Surface-mounted wired gas boiler heating thermostat Surface-mounted wired gas boiler heating thermostat Surface-mounted wired gas boiler heating thermostat Surface-mounted wired gas boiler heating thermostat

Surface-mounted wired gas boiler heating thermostat

Product ID : HTW-31-KT13V
Product Attributes :

This surface-mounted heating thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.

Product Description


HTW-31-KT13V.pdf

 >> General

This surface-mounted heating thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.

>>Features

•Large display can be clearly read with the background lighting.

•Easy to fit thermostat and receiver.

•Knob Button make it easy to use, press button to on/off thermostat, turn left/right to adjust the values.

•Non-programmable

•White Backlight

•The display shows the set temperature as well as the measured temperature.

•Temperature display in degrees Celsius.

>>Technical parameters

Thermostat operating voltage:                      2 x AAA1.5 V, alkaline batteries.
Backup storage:                                            EEPROM
Maximum voltage / (ohmic) load:                  8A.
Switch contacts:                                            NO and NC.
Temperature settings:                                   5°C ~ 30°C, 0.5°C increments.
Accuracy:                                                      +/- 0.5°C
Thermostat dimensions:                               Surface mounted, 135mm x 87.5 mm x 23.2mm.
Color:                                                            White
IP protection rating:                                      20.

>> Temp. Calibration & Channel Pairing


>>  Wiring Diagram

wiring diagram.jpg

>>Dimensions







Other Similar Products:

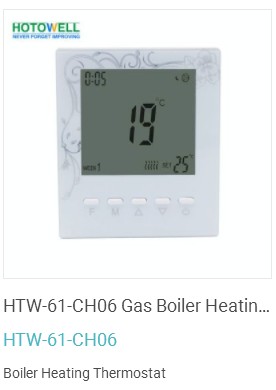

gas boiler thermostat CH06.JPG boiler thermostat KT13.JPG programmable boiler thermostat 91-410.JPG
