Hotowell V61 3 Wire DN15 DN20 DN25 3Way 2Way Motorized Check Valve

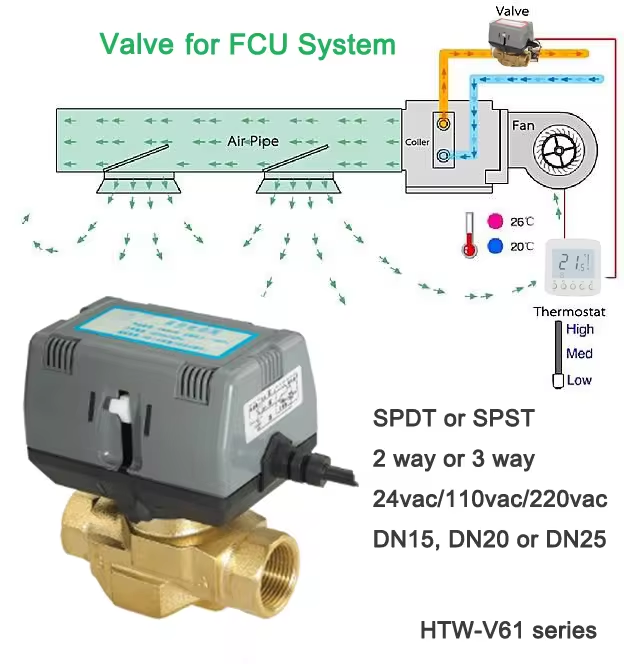

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
Product Description
Hotowell V61 3 Wire DN15 DN20 DN25 3Way 2Way Motorized Check Valve
>> General
HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
>> Features
>> Technical Parameter
| HTW-V61-** | |
| Power Supply | 24/110V/220V/230V, 50/60Hz |
| Consumption | 5W |
| Drive style | Bi-direction reversible motor drive |
| Cooperate time | the valve open within 16s at 60HZ |
| N.W.(Kg)-Actuator | 0.35 |
| Medium | Cool/hot water |
| Liquid temperature | 1~95°C |
| Pressure(MPa) | 1.6 |
| Environment temperature | 0~65°C the max relative humidity, non-condensing |
| Storage temperature | -20~65°C the max relative humidity, non-condensing |

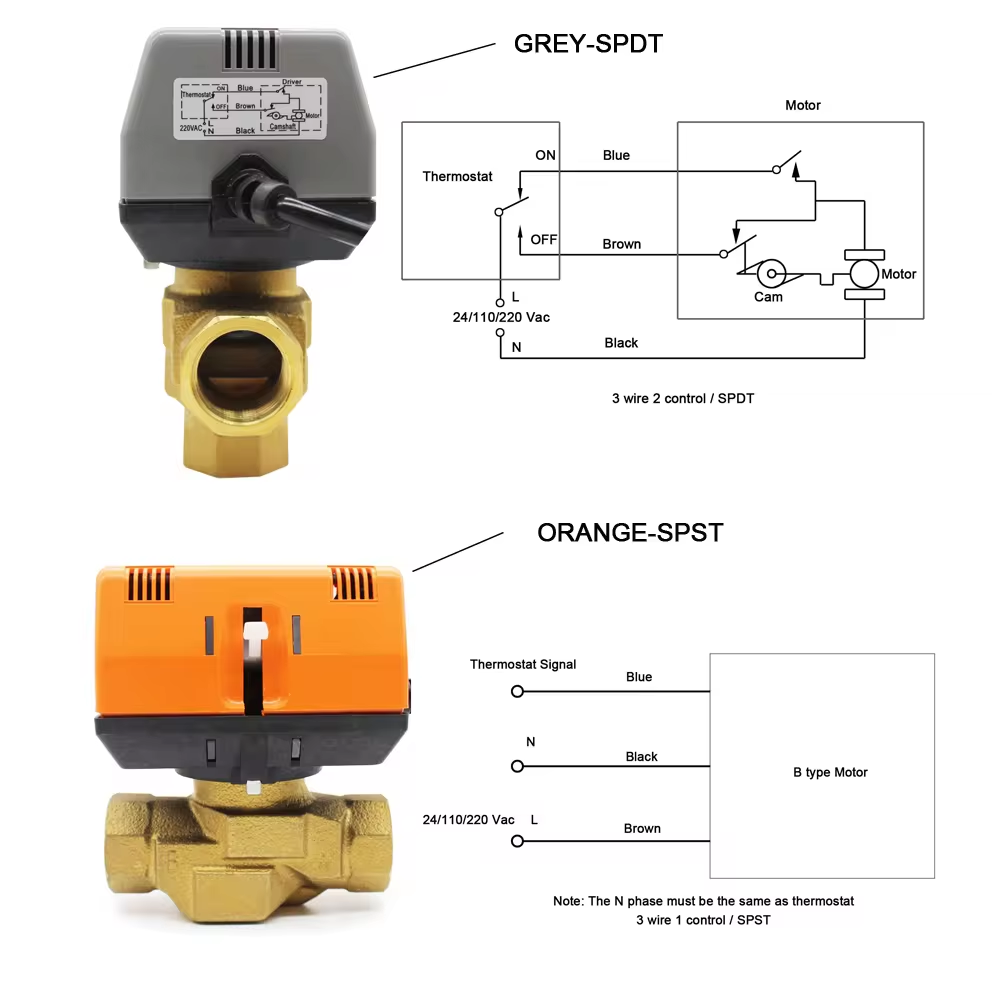

>>Typical wiring disgram
